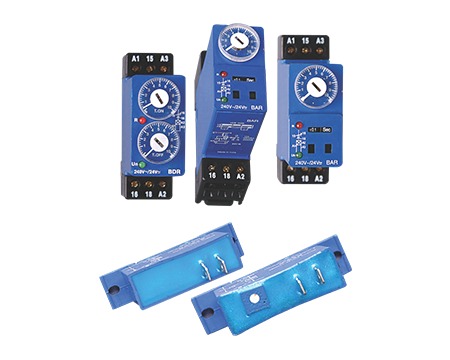

BCH SST00 Encapsulated On Delay Timer (0.1-300 s, solid state output)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH SST00 encapsulated electronic timer, general purpose on delay (delay on make, function A). Mono function, single time range (fixed or variable through potentiometer), fixed voltage, solid state output, totally sealed with polyurethane resin; surface and DIN rail mounting.
Specifications
| Cat Code (base) | SST00 |
| Function | Delay on make, function A |
| Time Range | 0.1-10 sec; 1-100 sec; 3-300 sec |
| Repeat Accuracy | +/-0.5% at constant ambient; +/-5% within temp. variation |
| Reset Time | 25ms after timing; 150ms during timing |
| Leakage Current | 5 mA max |
| Power Supply | 220/240 V AC; 110V AC; 48V AC/DC; 24V AC/DC |
| Supply Tolerance | 80% to 120% of rated supply |
| Frequency | 50/60 Hz |
| Output | Solid state output, Imax 0.6 A (at 40 deg C) |
| Voltage Drop | 3.5V |
| Operating Temperature | -20 deg C to +60 deg C |
| Peak Current | 20A < 10ms |
| Max. Switching Voltage | 250V AC/DC |
| Approx. Weight | 55 g |
| Construction | Totally sealed with polyurethane resin |
| Mounting | Surface mounting & DIN rail mounting |
Ordering / Variants
Ordering code SST00 + voltage code + 0 + time code. Voltage codes: 1 = 240V AC, 2 = 110V AC, 3 = 48V AC/DC, 4 = 24V AC/DC. Time codes: 1 = 0.1-10 sec, 2 = 1-100 sec, 3 = 3-300 sec.
