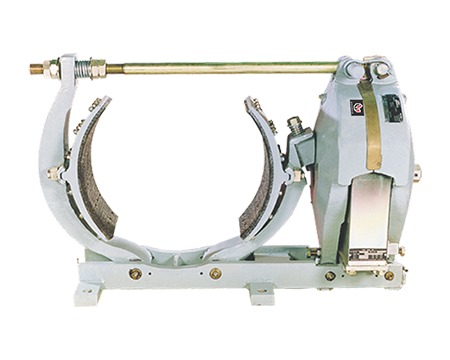

BCH SMH300 DC Electromagnetic Shunt Shoe Brake (300 mm, 746 Nm)
BCH SMH300 DC electromagnetic shunt shoe brake for a 13" / 300 mm brake wheel, torque rating 746 Nm (550 lbf ft) on continuous duty. BCH SM shunt type DC electromagnetic shoe brake conforming to AISE and NEMA standards, designed for heavy industrial and mill duty applications with 400, 600 and 800 range mill motors and other equipment where smooth, rapid and dependable stopping is required, including holding the load of hoists and elevators. Shunt coils are separately energised from a DC source, or from an AC source through a resistance & rectifier panel.
Specifications
| Cat Code | SMH300 |
| Brake Type | Shunt (SM shunt brake) |
| Brake Wheel / Drum Dia | 13" / 300 mm |
| Torque Rating, DC Operation (continuous duty) | 550 lbf ft / 746 Nm / 76.0 KGM |
| Torque Rating, AC Operation via Rectifier (continuous duty) | 550 lbf ft / 746 Nm / 76.0 KGM |
| Supply Voltage (shunt brake) | 230 V DC; 460 V DC; 240 V 50 Hz; 415 V 50 Hz |
| DC Supply | Operated along with permanent series resistance |
| AC Supply | Operated through brake control panel comprising resistor and rectifiers |
| Release Voltage for Shunt Coil | 80% of rated voltage (with the required ancillary control gear) |
| Brake Set Voltage for Shunt Coil | Below 50% of rated voltage (with the required ancillary control gear) |
| Duty | Intermittent (one hour) or continuous duty; all brakes supplied for continuous duty |
| Design | Electromagnetic shoe brake, over the wheel design; electrically released, spring set (fail safe) |
| Standards | AISE and NEMA |
| Coil | Epoxy filled Class F coil encapsulated in a sheet steel housing |
| Class of Insulation of Coil | Class F |
| Insulation Voltage | 660V |
| No. of Operations per Hour | 600 operations |
| Mechanical Life | 20 x 10^6 |
| Finish of Brakes | Grey |
| Torque Adjustment | All brakes can be mechanically adjusted down to 50% of their maximum rated torque |
| Operating Time | Approx. 0.2 to 1 sec. to set and 0.12 to 1.2 sec. to release, depending on the size of the brake |
| Optional Features (on request) | Residual magnetic gap adjustment (RMA); manual release (MR); limit switch attachment (LSA); special epoxy paint (SP) |
| Weight (metric version) | 190 kg |
| Equivalent | Metric brake equivalent to Russian TK-pi series |
Ordering / Variants
AISE inch version: SMH13. Supply voltage options: 230 V DC, 460 V DC, 240 V 50 Hz, 415 V 50 Hz. Optional features: RMA (residual magnetic gap adjustment), MR (manual release), LSA (limit switch attachment), SP (special epoxy paint).
Typical Applications
Hoists, elevators and similar machines; mill motors; cranes
