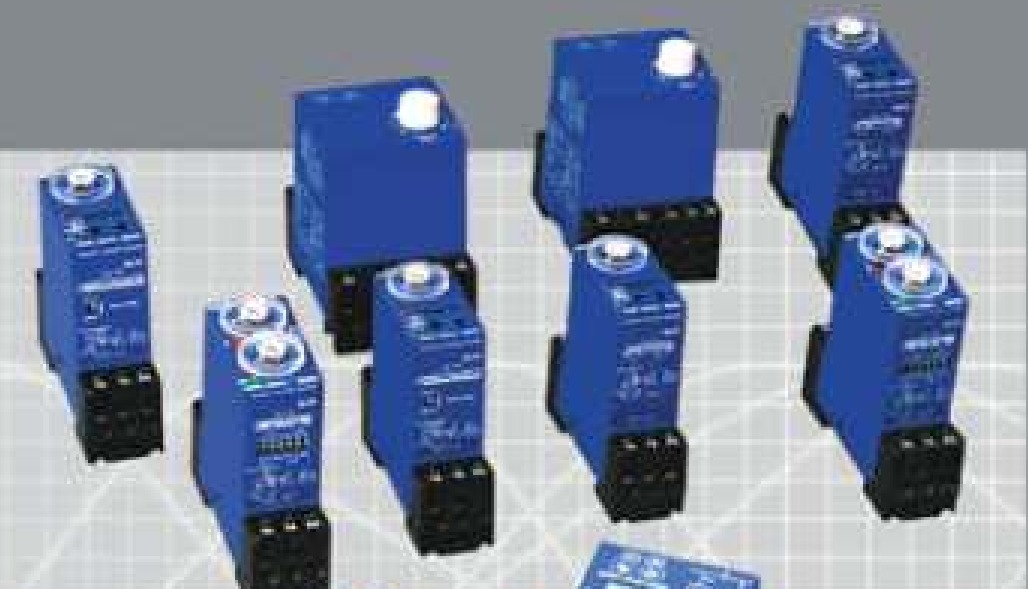

BCH SBT03 BLR Electronic Timer - Multifunction (0.1s-10h, SPDT)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH SBT03 (BLR) electronic timer, multifunction, functions a, b, c & h, with time range 0.1 sec to 10 hours and SPDT relay output rated 10A @ 240V AC. Multi time range and multi voltage, large calibrated dial, LED indications for input supply and output status, surface and DIN rail mounting; suitable for sequence control and other applications.
Specifications
| Cat Code (base) | SBT03 |
| Type | BLR |
| Function | Multifunction, functions A, B, C & H |
| Power Supply | 24V AC/DC & 240V AC; 24V AC/DC & 110V AC; 12V DC; 24V AC |
| Supply Tolerance | 85% to 110% of rated supply |
| Frequency | 50/60 Hz |
| Time Range | 0.1 sec to 10 hours |
| Repeat Accuracy | +/-0.2% at constant ambient; +/-1.5% within temp. variation |
| Output | SPDT relay, 10A @ 240V AC resistive load |
| Life Expectancy | Electrical 1 x 10^5 operations; mechanical 1 x 10^7 operations |
| No. of Operations | 1200 operations/hour at full load |
| Power Consumption | 7 VA at 220V AC |
| Operating Temperature | -20 deg C to +60 deg C |
| Peak Current | 15A < 0.01 sec |
| Max. Switching Voltage | 240V AC |
| Approx. Weight | 80 g |
| Standards | IEC 1000-4-2, IEC 1000-4-3, IEC 1000-4-4, IEC 1000-4-5, IEC 1000-4-6, IEC 1000-4-11, CISPR-22 |
| Mounting | Surface mounting & DIN rail mounting |
| Reset Time | 100ms max |
| Minimum Impulse Time | 20ms |
Ordering / Variants
Ordering code SBT03 + voltage code + 00N (e.g. SBT03100N). Voltage codes: 1 = 24V AC/DC & 240V AC, 2 = 24V AC/DC & 110V AC, 4 = 24V AC, 5 = 12V DC.
