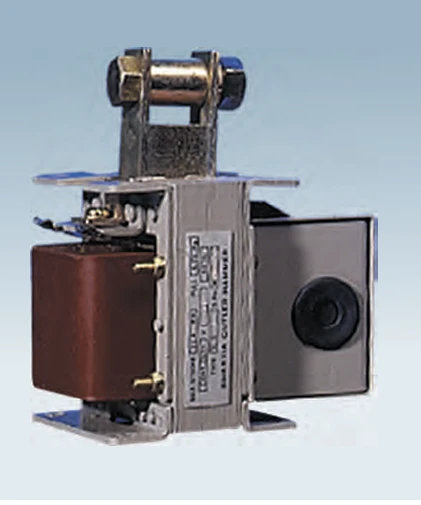

BCH S-71 AC Solenoid Brake (68.0 Nm)
Made in India
Contact for pricing
Available in Saudi Arabia
BCH AC solenoid-operated brake Type S-71 — 68.0 Nm braking torque, 180 mm brake wheel, continuous duty. Electrically released and spring applied for fail-safe operation; Class F insulation; cast-iron over-size wheel for low shoe pressure and long life. Catalogue code S71<voltage> (e.g. S71L for 380V). Typical uses: conveyors, hoists, machine tools, cranes, overhead doors.
Specifications
| Brake Type | S-71 |
| Torque Rating | 68.0 Nm |
| Wheel Diameter (approx.) | 180 mm |
| Moment of Inertia (Wk²) | 0.066 kgm² |
| Coil Duty | Continuous |
| Operation | Electrically released, spring applied (fail-safe) |
| Class of Insulation | Class F |
| Coil Colour | Dark brown |
| Coil Inrush | 2200 VA / 1300 W |
| Coil Sealed | 250 VA / 70 W |
| Standard Coil Voltages | 110V (A), 220V (B), 380V (L), 415V (M), 440V (C) 50 Hz |
| Catalogue Code | S71-<voltage> (e.g. S71L = 68.0 Nm at 380V) |
| Mounting | Floor position only |
| Weight (brake only) | 15.3 kg |
| Weight (brake with wheel) | 23.9 kg |
| Wheel Weight | 8.6 kg |
| Wheel Catalogue Code | AC 50 D7 |
