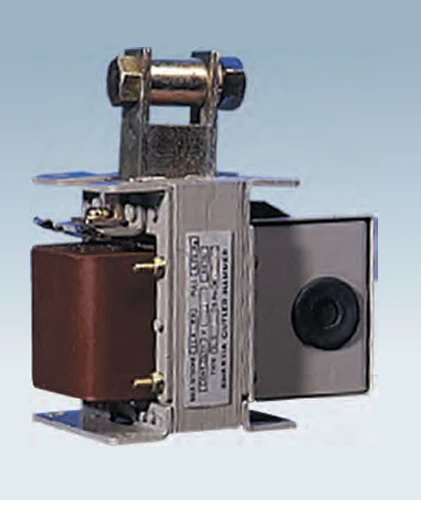

BCH S-2501 AC Solenoid Brake (147.0 Nm)
Made in India
Contact for pricing
Available in Saudi Arabia
BCH AC solenoid-operated brake Type S-2501 — 147.0 Nm braking torque, 250 mm brake wheel, continuous duty. Electrically released and spring applied for fail-safe operation; Class F insulation; cast-iron over-size wheel for low shoe pressure and long life. Catalogue code S2501<voltage> (e.g. S2501L for 380V). Typical uses: conveyors, hoists, machine tools, cranes, overhead doors.
Specifications
| Brake Type | S-2501 |
| Torque Rating | 147.0 Nm |
| Wheel Diameter (approx.) | 250 mm |
| Moment of Inertia (Wk²) | — |
| Coil Duty | Continuous |
| Operation | Electrically released, spring applied (fail-safe) |
| Class of Insulation | Class F |
| Coil Colour | Dark brown |
| Coil Inrush | 2800 VA / 1600 W |
| Coil Sealed | 350 VA / 150 W |
| Standard Coil Voltages | 110V (A), 220V (B), 380V (L), 415V (M), 440V (C) 50 Hz |
| Catalogue Code | S2501-<voltage> (e.g. S2501L = 147.0 Nm at 380V) |
| Mounting | Floor position only |
| Weight (brake only) | 20.0 kg |
| Weight (brake with wheel) | 37.4 kg |
| Wheel Weight | 17.4 kg |
| Wheel Catalogue Code | AC 50 D25 |
