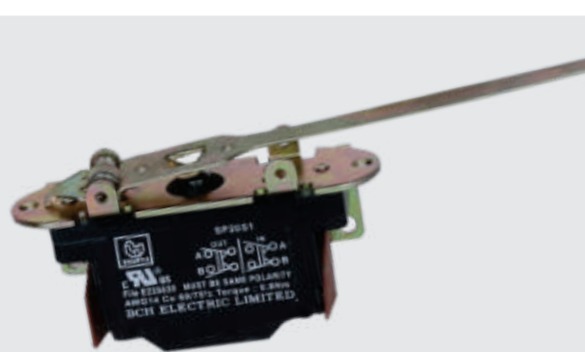

BCH PSSIL-R Precision Limit Switch - Six Inch Lever Right (1NO+1NC)
BCH PSSIL-R precision limit switch with six inch lever right operator and single pole 1NO+1NC changeover contacts. BCH Precision Limit Switches are designed for industrial applications having reliable & accurate operation with exceptionally long life, for applications like panel doors, high voltage disconnector switching, transformer on-load tap changer and hydraulic valve switching. Rated AC-15 & DC-13 as per IS/IEC 60947-5-1, 15 A thermal current, 600 V AC insulation voltage, up to 2500 operations per hour.
Specifications
| Cat Code | PSSIL-R |
| Type of Operator | Six inch (150 mm) lever, top and right hand mounting; the lever may be formed, cut or bent by the user to any desired length or shape |
| Contacts | 1NO+1NC (single pole) |
| Utilization Category | AC-15 & DC-13 as per IS/IEC 60947-5-1 |
| Thermal Current (Ith) | 15 A |
| Insulation Voltage (Ui) | 600 V AC |
| Mechanical Life | 20 x 10^6 operations without operator |
| Electrical Life | 10 x 10^6 operations with operator |
| Frequency of Operations | 2500 operations per hour (max.) |
| Terminal Capacity | 2.5 mm2 solid or stranded conductors |
| Tightening Torque | 0.8 Nm for M3.5 screw |
| Contact Mechanism | Quick make & quick break action, low bounce, serrated silver stationary contacts |
| Case | Semi dust-tight moulded phenolic case |
| AC-15 Rating (1NO+1NC) | 600V 0.8A; 440V 1.0A; 220V 2.0A; 110V 4.0A |
| DC-13 Rating (1NO+1NC), single throw / double throw | 600V 0.1A / 0.02A; 230V 0.5A / 0.20A; 115V 2.0A / 0.50A |
Ordering / Variants
2NO+2NC version: PSSIL-R-2. Spare contact block: SP20S1.
Typical Applications
Panel doors; high voltage disconnector switching; transformer on-load tap changer; hydraulic valves switching
