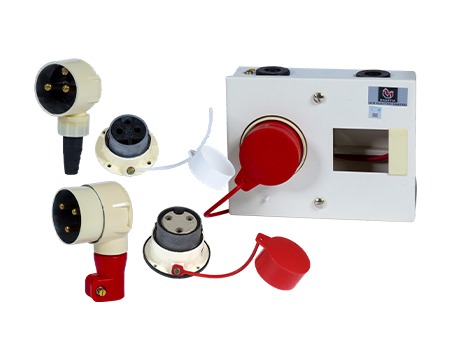

BCH MS30 Metal Clad Socket (30A, 415V, 3P+E, IP44)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH MS30 metal clad industrial socket, 30 A, 415 V, 3P + E, IP 44, conforming to IS:8804. Non-corroding die cast aluminium alloy body with floating self-aligning contacts and scraping earth feature so the earth connection is made first and broken last. The socket is shrouded against accidental finger contact with pins and is supplied with a protective cap for use when no plug is inserted.
Specifications
| Cat Code | MS30 |
| Product Type | Metal Clad Socket |
| Conforming to Standard | IS:8804 |
| Current Rating | 30 A |
| Type | Three phase |
| Rated Voltage | 415 V |
| Insulation Voltage | 500 V |
| Thermal Rating | 32 A |
| Max. HP at Rated Voltage | 25 HP |
| Range | 30 A , 4 Pin Plug & Socket |
| Body Type | Metal Clad |
| No. of Pins | 3P + E |
| Protection Category | IP 44 |
| Dielectric Withstand Suitability | 2 kV for 1 minute |
| Casting | Non - corroding die cast aluminium alloy |
| Insulated Interior | High anti tracking properties |
| Contacts | Floating contacts for self - aligning to facilitate smooth plugging |
| Earthing | Provided with scraping earth feature to ensure earth connection is made first & break last |
| Mounting | Universal mounting |
| Protective Cap | Provide safety while socket is not in use |
Datasheet, certificates and quotation on request - info@west-velocity.com.
