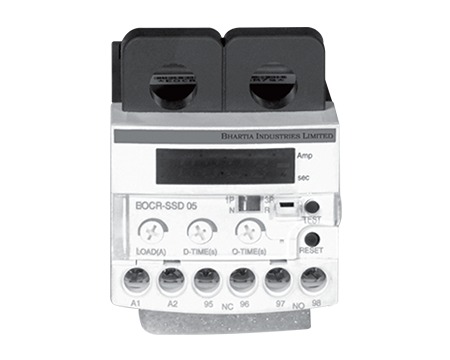

BCH MP22SSD030 BOCR-SSD Digital Electronic Overcurrent Relay (3.0-30A)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH BOCR-SSD electronic motor protection relay with digital display, current setting 3.0 ~ 30A, with 2 integral current transformers. Protects motors against over current, phase loss and locked rotor with definite time-current characteristics; single or three phase load selection by DIP switch. Two SPST output relays rated 3A/250V AC resistive.
Specifications
| Cat Code | MP22SSD030 |
| Model | BOCR-SSD |
| Catalogue Type | 10 |
| Current Setting Range | 3.0 ~ 30A |
| Protections | Over current, phase loss, locked rotor |
| Start Delay Time (D-Time) | 1 ~ 30 sec |
| Trip Time (O-Time) | 0.5, 1 ~ 10 sec |
| Control Voltage | 24 ~ 240V AC/DC (suffix S4); 380 ~ 440V AC (suffix W1) |
| Output Relay | 2 - SPST, 3A/250V AC resistive |
| Time-Current Characteristics | Definite |
| Trip Indication | Digital display |
| Load Selection | Single / three phase by DIP switch |
| Current Transformers | 2 integral current transformers |
| Mounting | DIN rail / panel mounting |
| General Features | Adjustable current setting and tripping time, test function, ambient insensitive, low power consumption |
Ordering / Variants
Complete the cat. no. with control voltage suffix: S4 (24-240V AC/DC) or W1 (380-440V AC).
Typical Applications
Pumps, HVAC, conveyor systems, machinery and other single or three phase equipment
