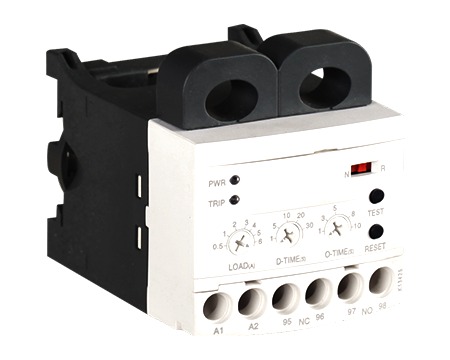

BCH MP21SS005 BOCR-SS Electronic Overcurrent Relay (0.5-6A)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH BOCR-SS electronic motor protection relay, type 05, current setting 0.5 ~ 6A, with 2 integral current transformers. Protects motors against over current, phase loss and locked rotor with definite time-current characteristics and LED trip indication. Changeover (1SPDT) output relay rated 3A/250V AC resistive; for currents above 60A an external CT should be used.
Specifications
| Cat Code | MP21SS005 |
| Model | BOCR-SS |
| Type | 05 |
| Current Setting Range | 0.5 ~ 6A |
| Over 60A | Ext. CT option |
| Protections | Over current, phase loss, locked rotor |
| Start Delay Time (D-Time) | 0.2 ~ 30 sec |
| Trip Time (O-Time) | 0.2 ~ 10 sec |
| Control Voltage (50/60 Hz) | 24 ~ 240V AC/DC (suffix S4); 380 ~ 440V AC (suffix W1) |
| Output Relay | Changeover (1SPDT), 3A/250V AC resistive |
| Time-Current Characteristics | Definite |
| Trip Indication | LED |
| Current Transformers | 2 integral current transformers |
| Mounting | DIN rail / panel mounting |
| General Features | Adjustable current setting and tripping time, test function, ambient insensitive, low power consumption |
Ordering / Variants
Complete the cat. no. with control voltage suffix: S4 (24-240V AC/DC) or W1 (380-440V AC).
Typical Applications
Pumps, HVAC, conveyor systems, machinery and other single or three phase equipment
Datasheet, certificates and quotation on request - info@west-velocity.com.
