BCH Modular Enclosure (Form-1 to Form-3b)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia

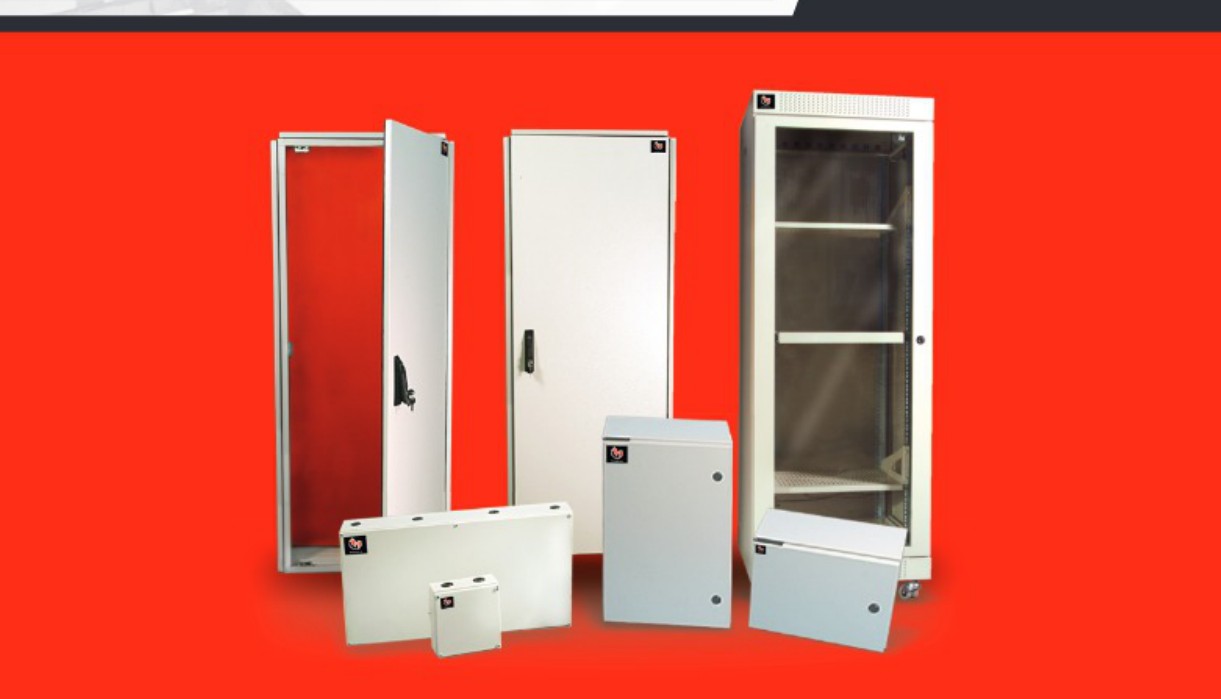

BCH modular enclosure — contemporary, highly flexible modular system for AC drives, automation control and power distribution. Form-1 standard with semi/fully compartmentalised options up to Form-3b. Robust bolted subframe, flat-pack shipment.
Specifications
| Protection | IP54 / IP55 / IK10 |
| Construction | 100% bolted; separate subframe with removable doors & covers |
| Material | 2 / 1.6 mm CRCA/GPSP (2.0 mm GPSP frame, 1.6 mm CRCA doors & covers) |
| Mounting Plate | 3 mm thick, powder coated RAL-2000, depth adjustable |
| Finish | Powder coated RAL 7035 structure finish |
| Gasket | Foamed-in PU |
| Door | 120° opening, 3-point lock standard |
| Plinth | Optional 100 mm, from 2 mm |
| Width | Up to 800 mm single door; 1000 & 1200 mm double door |
| Features | Baying kit, lifting eye bolts, wiring plan pocket, M6 tapping every 25 mm on subframe |
