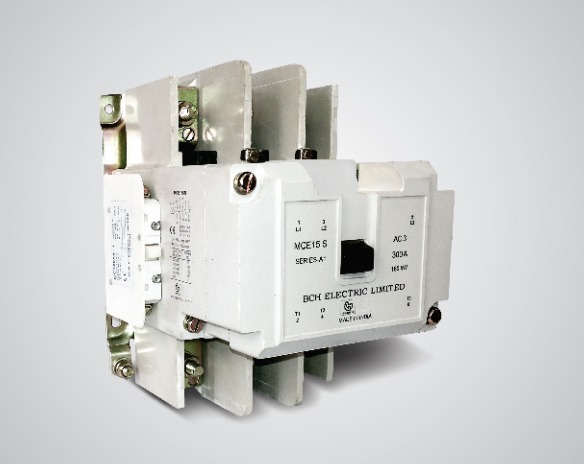

BCH MCE15S0N3 Freedom AC Contactor (265A AC-3, 90kW)

Brand: BCH

SKU: MCE15S0N3

MPN: MCE15S0N3

Made in India

Contact for pricing

Available in Saudi Arabia

Wishlist

Chat on WhatsApp Request a Quotation by Email info@west-velocity.com

Available in 🇸🇦 Saudi Arabia

BCH Duros Freedom series MCE15S0N3 3-pole AC contactor rated 265 A in AC-3 duty at 380/415V 50Hz (90/90 kW), built to IS/IEC 60947-4-1. 178 mm frame, 315 A thermal current (AC-1), 165 A AC-4 rating and 660 V operational voltage. Freedom contactors feature a snap-open design for easy inspection, low VA burden coils and self-lifting terminal screws, and are tested for Type-2 coordination.

Specifications

Cat. Reference	MCE15S0N3* (* = coil voltage suffix)
Rated Current AC-3 at 380/415V 50Hz (Ie)	265 A
Standard Power Rating at 380V/415V 50Hz	90/90 kW
Electrical Endurance at rated current AC-3	0.55 million
Max. Frequency of No-load Operation	600 op/h
Frame Size	178 mm
Number of Poles	3
Mounting Dimensions	M6 160x166.5 mm
Weight	8.3 kg
Mechanical Durability	5 million
Operational Voltage (Ue)	660 V
Insulation Voltage (Ui)	690 V
Impulse Voltage Withstand	6 kV
Thermal Current (Ith)	315 A
Connections	240 mm²
AC-1 Rating at 380/415V 50Hz	315 A
AC-4 Rating at 380/415V 50Hz	165 A
Electrical Life at rated current AC-4	60000 ops
AC-4 Rating for 200000 operations	75 A
Stator Current Rating AC-2 (≤55°C, 100% DF)	265 A
Rotor Duty Rating, Delta Connected (≤40°C) 100/60/40/20% DF	425 / 550 / 700 / 950 A
Max. Rotor Voltage	Starting & Inching: Delta 1160V, Star 1380V; Starting & Plugging: Delta 580V, Star 690V
Transformer Primary Switching 500V AC	100 A
Capacitor Switching (single bank only) 380/400V 3ph	140 kVAR
Coil Consumption Pick-up / Seal	1040 VA / 116 VA
Standard	IS/IEC 60947-4-1
Operating Temperature	-20°C to +60°C
Operating Altitude	2000 m
Humidity	50% RH at 60°C; 95% RH at 40°C
Vibration	5 to 100 Hz (0.7g in x,y,z plane)
Operating Position	±30°
