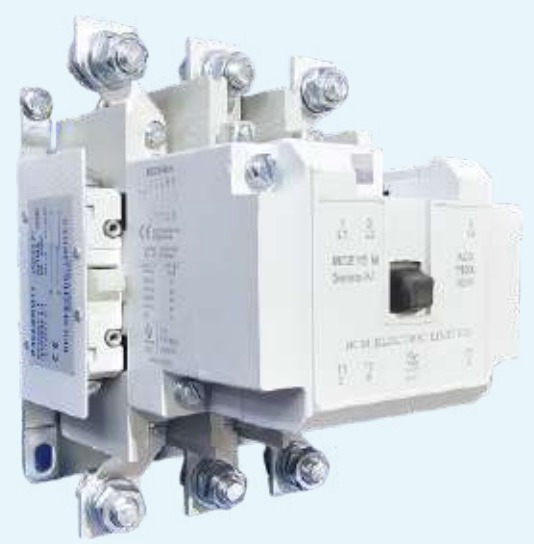

BCH MCE15QN3 Citation 3-Pole Contactor (185A AC-3, 90kW)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH Citation series MCE15QN3 3-pole contactor size Q, rated 185 A / 90 kW in AC-3 duty at 415V and 300 A AC-1, supplied with 1NO+1NC auxiliary contact. Citation contactors are designed for high performance and easy maintenance, with total front maintainability, rugged design and a wide ambient range of -5°C to +55°C.
Specifications
| Cat. No. | MCE15QN3■7 (■ = coil voltage code) |
| Size | Q |
| Number of Poles | 3 |
| AC-1 Rating | 300 A |
| AC-3 Rating at 415V | 185 A / 120 HP / 90 kW |
| Auxiliary Contact | 1NO+1NC |
| Ambient Operating Temperature | -5°C to +55°C |
| Standard | IEC-158 |
Ordering / Variants
AC suffix: 24V U, 110V A, 220V B, 240V K, 380V L, 415V M, 440V C, 550V D; DC suffix: 24V U3, 110V A3.
Typical Applications
Mill duty, crane control, motor control centres, switching of solenoids, capacitor banks, lighting & heating circuits
Datasheet, certificates and quotation on request - info@west-velocity.com.
