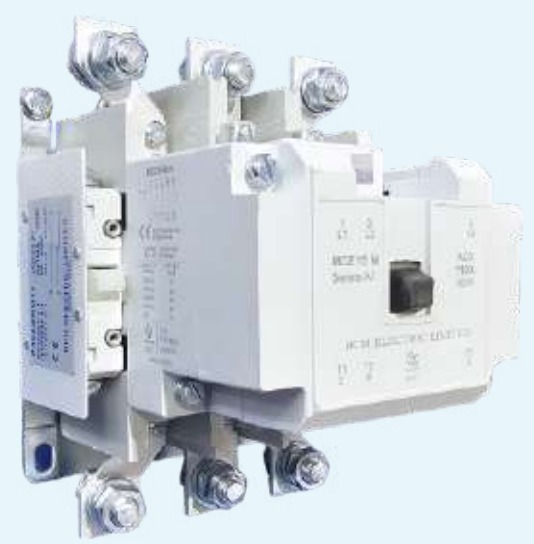

BCH MCE15MN3 Citation 3-Pole Contactor (110A AC-3, 60kW)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH Citation series MCE15MN3 3-pole contactor size M-5, rated 110 A / 60 kW in AC-3 duty at 415V and 150 A AC-1, supplied with 1NO+1NC auxiliary contact. Citation contactors are designed for high performance and easy maintenance, with total front maintainability, rugged design and a wide ambient range of -5°C to +55°C.
Specifications
| Cat. No. | MCE15MN3■5 (■ = coil voltage code) |
| Size | M-5 |
| Number of Poles | 3 |
| AC-1 Rating | 150 A |
| AC-3 Rating at 415V | 110 A / 80 HP / 60 kW |
| Auxiliary Contact | 1NO+1NC |
| Ambient Operating Temperature | -5°C to +55°C |
| Standard | IEC-158 |
Ordering / Variants
AC suffix: 24V U, 48V W, 110V A, 220V B, 240V K, 380V L, 415V M, 440V C, 550V D.
Typical Applications
Mill duty, crane control, motor control centres, switching of solenoids, capacitor banks, lighting & heating circuits
Datasheet, certificates and quotation on request - info@west-velocity.com.
