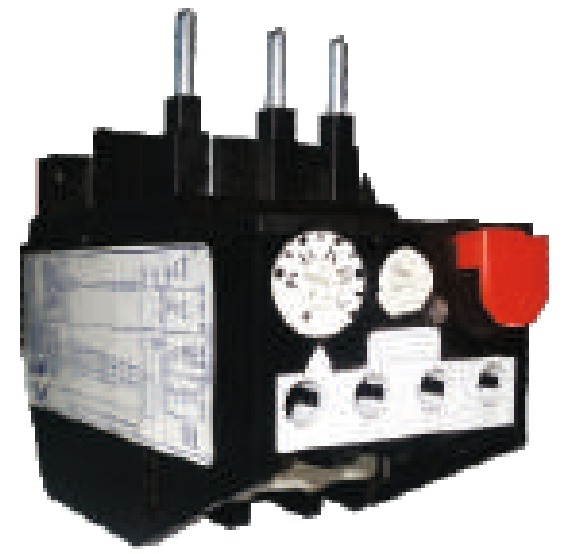

BCH MC318ANA3M Freedom Thermal Overload Relay (4.50-6.50 A)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH Freedom direct-mounting thermal overload relay MC318ANA3M with relay range 4.50 to 6.50 A, trip class 10A and potential free 1NO+1NC contacts. It has built-in single phasing protection, ambient temperature compensation, a test button and field convertible auto / manual reset. Mounts directly on Freedom contactors (CE15BN to CE15FN) or individually with adaptor C318F1.
Specifications
| Cat Code | MC318ANA3M |
| Relay Type | Freedom Relay - Direct |
| Relay Range (A) | 4.50 to 6.50 |
| Direct Mounting on Contactor | CE15BN to FN + MC318ANA3* (per dimension drawing) |
| Adaptor for Individual Mounting | C318F1 |
| Storage Temperature | -40 to +70 deg C |
| Operating Temperature | -25 to +55 deg C |
| Fixing | Direct / independent mounting |
| Rated Insulation Voltage Ui | 690 V |
| Tripping Class (IEC 947-4-1) | 10A |
| Switching Frequency | 15 Op./Hr |
| Auxiliary Contacts | 1NO+1NC |
| Reset Type | Auto / manual selectable |
| Rated Voltage at NO/NC Contacts | 500 V |
| Rated Operational Current AC15 | 240V: 3(NC) / 1.5(NO) A; 440V: 1.9(NC) / 0.95(NO) A; 500V: 1(NC) / 0.75(NO) A |
| Rated Operational Current DC13 (220V) | 0.12(NC) / 0.04(NO) A |
| gG Class Protection Fuse | 10(NC) / 6(NO) A |
| Features | Built-in single phasing protection, ambient temperature compensation, test button for checking tripping mechanism, field convertible auto / manual reset, contactor mounting & separate mounting, potential free contacts |
Ordering / Variants
Freedom relay range MC318ANA3A to MC318ANA3T (0.10 A to 32 A); use adaptor C318F1 for individual mounting.
