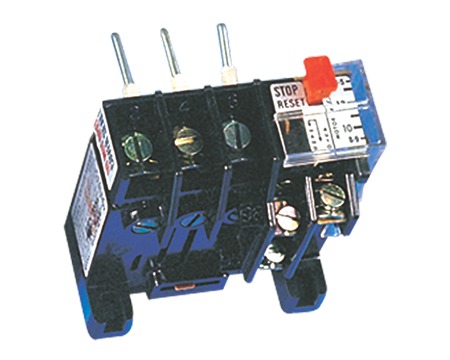

BCH MC305ANA3L Citation Thermal Overload Relay (13.20-20.00 A)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH Citation direct-mounting thermal overload relay MC305ANA3L with relay range 13.20 to 20.00 A, trip class 10. It has built-in single phasing protection, ambient temperature compensation, a test button for checking the tripping mechanism and field convertible auto / manual reset. Mounts directly on the contactor, or separately using the terminal block accessory.
Specifications
| Cat Code | MC305ANA3L |
| Relay Type | Citation Direct |
| Relay Range (A) | 13.20 to 20.00 |
| Tripping Class (IEC 947-4-1) | 10 |
| Fixing | Direct mounting |
| Storage Temperature | -40 to +60 deg C |
| Operating Temperature | -10 to +55 deg C |
| Rated Insulation Voltage Ui | 690 V |
| Switching Frequency | 15 Op./Hr |
| Auxiliary Contacts | 1C/O |
| Reset Type | Auto / manual selectable |
| Rated Voltage at NO/NC Contacts | 600 V |
| Rated Operational Current AC15 | 240V: 2.5 A; 440V: 1.4 A; 500V: 1.2 A |
| Rated Operational Current DC13 (220V) | 0.12 A |
| gG Class Protection Fuse | 4 A |
| Features | Built-in single phasing protection, ambient temperature compensation, test button for checking tripping mechanism, field convertible auto / manual reset, snap on cover, contactor mounting & separate mounting |
Ordering / Variants
Accessories: DIN rail kit MC305DM2; terminal block MC305TB2 (for individual mounting); terminal block MC305TB3 for terminal side; adjustment cover MC305PC.
Datasheet, certificates and quotation on request - info@west-velocity.com.
