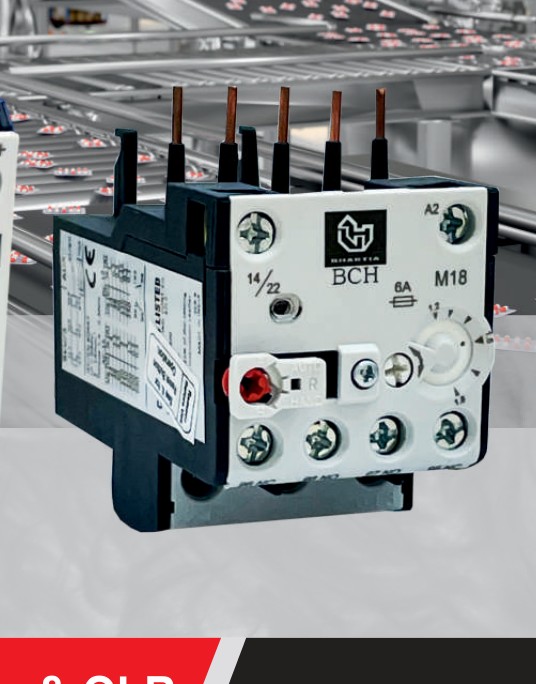

BCH MC15BRH10 Overload Relay (7.0 - 10.0 A)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH MC15BRH10 bimetallic overload relay (Trip Class 10), current adjustment range 7.0 - 10.0 A, for single- and three-phase motor overload and phase-loss protection. Direct-mounts to CA15 mini contactors; selectable manual/auto reset, integral stop button, IP20 guarded terminals, ambient temperature compensated, RoHS compliant.
Specifications
| Type | Bimetallic Overload Relay (MC15BR) |
| Cat. No. | MC15BRH10 |
| Current Adjustment Range | 7.0 - 10.0 A |
| Trip Class | Class 10 |
| Poles | 3 |
| Reset | Selectable manual or automatic |
| Phase Loss Sensitivity | Yes (single-phase sensitivity) |
| For use with | BCH CA15 series mini contactors (direct mount) |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand (Uimp) | 6 kV |
| Max. Operating Current (Ie) | 17 A |
| Short Circuit Current | 5 kA |
| Operating Frequency | 50 / 60 Hz |
| Ambient Temperature | -5 to +40°C |
| Ingress Protection | IP20 (guarded terminals) |
| Weight | 0.15 kg |
| RoHS | Compliant |
