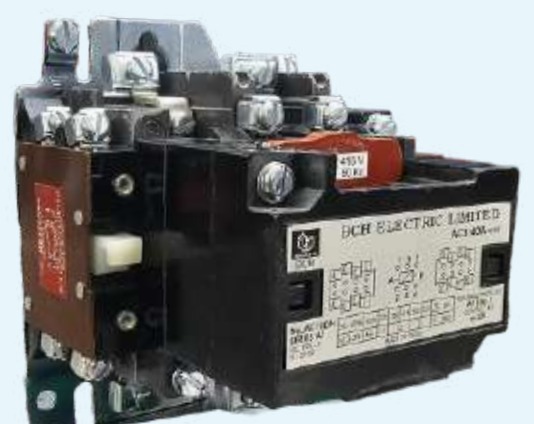

BCH MC10EN Citation 3-Pole Contactor (70A AC-3, 37kW)
BCH Citation series 3-pole contactor size E, rated 70 A / 37 kW in AC-3 duty at 415V with AC control. Citation contactors have an encapsulated plug-in coil, front accessibility for contact and coil inspection and replacement, a wide operating temperature range of -5°C to +55°C, and are suitable for AC-4 duty applications. Typical uses include mill duty, crane control, motor control centres, switching of solenoids, capacitor banks and lighting & heating circuits.
Specifications
| Cat. No. (without aux. contact) | MC10EN00■ |
| Size | E |
| Number of Poles | 3 |
| Control | AC |
| AC-3 Rating at 415V | 70 A / 50 HP / 37 kW |
| Ambient Operating Temperature | -5°C to +55°C |
| Standard | IEC-158 |
Ordering / Variants
Aux. contact versions: MC10EN22■ (2NO+2NC), MC10EN11■ (1NO+1NC), MC10EN00■ (without aux. contact); ■ = coil voltage code. AC suffix: 24V U, 110V A, 220V B, 240V K, 380V L, 415V M, 440V C, 550V D.
Typical Applications
Mill duty, crane control, motor control centres, switching of solenoids, capacitor banks, lighting & heating circuits
Datasheet, certificates and quotation on request - info@west-velocity.com.
