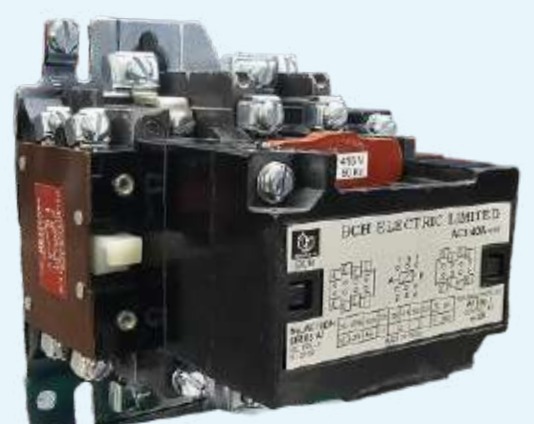

BCH MC10DN Citation 3-Pole Contactor (40A AC-3, 22kW)
BCH Citation series 3-pole contactor size D, rated 40 A / 22 kW in AC-3 duty at 415V with AC control. Citation contactors have an encapsulated plug-in coil, front accessibility for contact and coil inspection and replacement, a wide operating temperature range of -5°C to +55°C, and are suitable for AC-4 duty applications. Typical uses include mill duty, crane control, motor control centres, switching of solenoids, capacitor banks and lighting & heating circuits.
Specifications
| Cat. No. (without aux. contact) | MC10DN00■ |
| Size | D |
| Number of Poles | 3 |
| Control | AC |
| AC-3 Rating at 415V | 40 A / 30 HP / 22 kW |
| Ambient Operating Temperature | -5°C to +55°C |
| Standard | IEC-158 |
Ordering / Variants
Aux. contact versions: MC10DN22■ (2NO+2NC), MC10DN11■ (1NO+1NC), MC10DN00■ (without aux. contact); ■ = coil voltage code. AC suffix: 110V A, 220V B, 240V K, 380V L, 415V M, 440V C, 550V D.
Typical Applications
Mill duty, crane control, motor control centres, switching of solenoids, capacitor banks, lighting & heating circuits
