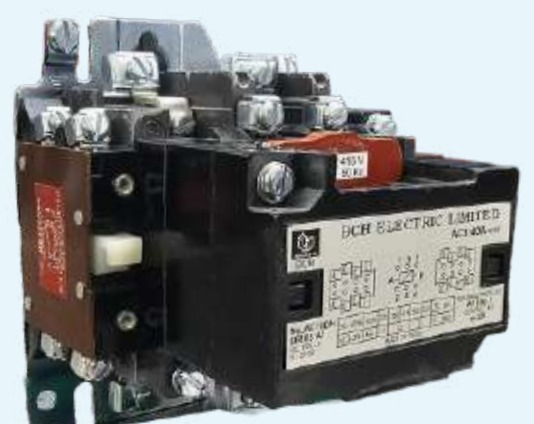

BCH MC10D1N Citation 3-Pole Contactor (50A AC-3, 25kW)
BCH Citation series 3-pole contactor size D1, rated 50 A / 25 kW in AC-3 duty at 415V with AC control. Citation contactors have an encapsulated plug-in coil, front accessibility for contact and coil inspection and replacement, a wide operating temperature range of -5°C to +55°C, and are suitable for AC-4 duty applications. Typical uses include mill duty, crane control, motor control centres, switching of solenoids, capacitor banks and lighting & heating circuits.
Specifications
| Cat. No. (without aux. contact) | MC10D1N00■ |
| Size | D1 |
| Number of Poles | 3 |
| Control | AC |
| AC-3 Rating at 415V | 50 A / 33.5 HP / 25 kW |
| Ambient Operating Temperature | -5°C to +55°C |
| Standard | IEC-158 |
Ordering / Variants
Aux. contact versions: MC10D1N22■ (2NO+2NC), MC10D1N11■ (1NO+1NC), MC10D1N00■ (without aux. contact); ■ = coil voltage code. Coil voltage codes as per BCH coil voltage table.
Typical Applications
Mill duty, crane control, motor control centres, switching of solenoids, capacitor banks, lighting & heating circuits
