BCH LPGS General Purpose Limit Switch - Top Plunger (1NO+1NC, IP54)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia

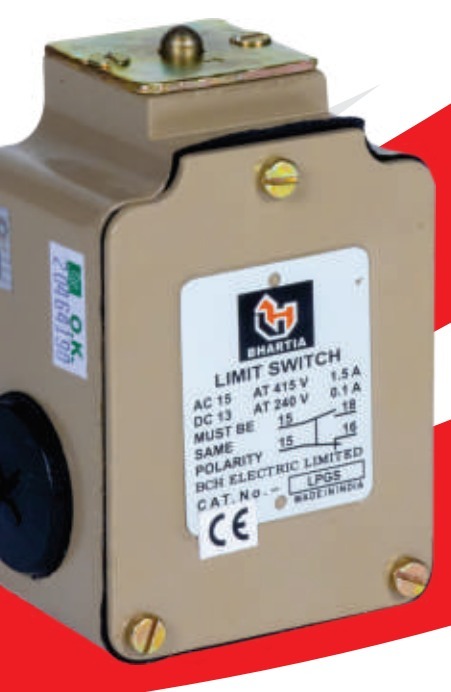

BCH LPGS heavy duty general purpose limit switch with top plunger (6.3 mm dia plunger) for linear motion. BCH Heavy Duty General Purpose Limit Switches are designed for remote control of automatic starters, contactors etc. for both AC & DC supply, and are suitable for AC15 & DC13 duties as per IS/IEC 60947-5. Aluminium die-cast body, IP54, 1NO+1NC screw terminals, 10A thermal current, 600 VAC insulation voltage and mechanical durability of 20 x 10^6 operations.
Specifications
| Cat Code | LPGS |
| Operating Head | Top plunger, 6.3 mm dia |
| Standard | IS / IEC 60947-5 |
| Marking | CE marked |
| Ambient Temperature | -5 to +40 deg. C |
| Enclosure Material | Aluminium die-cast |
| IP Category | IP54 |
| Mechanical Durability | 20 x 10^6 operations |
| Frequency of Operations | 2500 operations per hour |
| Contacts | 1 NO + 1 NC, screw terminals |
| Utilization Category | AC-15 & DC-13 as per IS/IEC 60947-5 |
| Conventional Enclosed Thermal Current (Ith) | 10A |
| Rated Insulation Voltage (Ui) | 600 VAC |
| Rated Impulse Withstand Voltage | 2.5kV |
| Short Circuit Protection | HRC fuse 10A |
| Terminal Capacity | 2.5 mm2 solid or stranded |
| Earthing | M4 earthing screw |
| Cable Entry | 3/4" dia (3 nos. conduit entries) |
| AC-15 Rating (1NO+1NC) | 110V 6.0A; 220V 3.0A; 440V 1.5A; 550V 1.2A |
| DC-13 Rating (1NO+1NC) | 24V 1.0A; 60V 0.5A; 110V 0.2A; 220V 0.1A |
| Travel to Trip (A) | 3.5 |
| Travel to Reset from Trip Point (B) | 2.0 (max.) |
| Over Travel (C) | 1 (max.) |
| Total Travel (D) | 4.5 |
| Force to Trip (max.) | 1.5 kg |
Ordering / Variants
Spare limit switch assembly (1NO+1NC): SP40S1WOM.
Datasheet, certificates and quotation on request - info@west-velocity.com.
