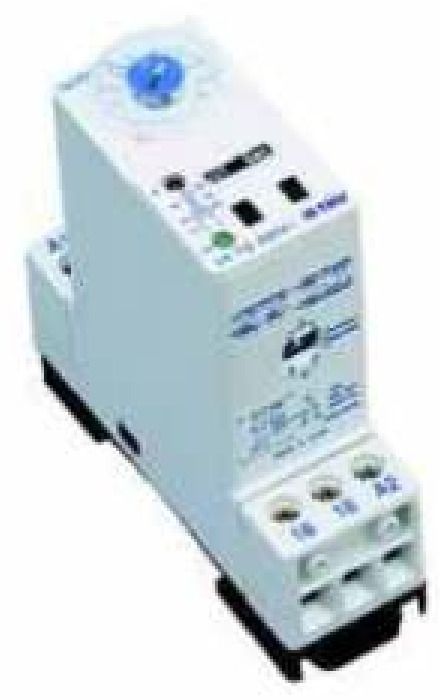

BCH IBT04500 Multifunction Electronic Timer (24-240V AC/DC, 4 Functions)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH IBT04500 multifunction electronic timer with 4 functions (on delay, interval, off delay, single shot), multi time range (sec / min / hr, 1s to 10h in 6 ranges) and universal 24-240 V AC/DC supply. Large calibrated dial, compact design, LED indications for input supply and output status, surface and DIN rail mounting, 1 changeover relay output (SPDT, 7A @ 250V).
Specifications
| Cat Code | IBT04500 |
| Function | 4 functions - On delay, Interval delay, Off delay & Single shot |
| Power Supply | 24 - 240 V AC/DC |
| Operating Range | 85 to 110% of rated voltage |
| Time Range | 6 ranges - 1s, 10s, 1min, 10min, 1h, 10h |
| Setting Accuracy | +/-10% of full scale at 25 deg C |
| Rated Frequency | 50/60 Hz |
| Repeat Accuracy | +/-0.5% or 50ms (whichever is greater) with constant parameters |
| Temperature Drift | +/-0.05% / deg C of full scale |
| Reset Time | 100ms |
| Minimum Pulse Duration | 30ms |
| Control Output | 7A @ 250V, 1 C/O (SPDT), resistive load |
| Operating Temperature | -20 deg C to +50 deg C |
| Storage Temperature | -25 deg C to +70 deg C |
| Size (W x H x D) | 24mm x 45mm x 75mm |
| Mechanical Life | 1 x 10^7 operations |
| Electrical Life | 1 x 10^5 operations with full load |
| Housing Material | Plastic |
| Mounting | Surface mounting & DIN rail mounting |
| Indication | LED for input supply and output status |
Datasheet, certificates and quotation on request - info@west-velocity.com.
