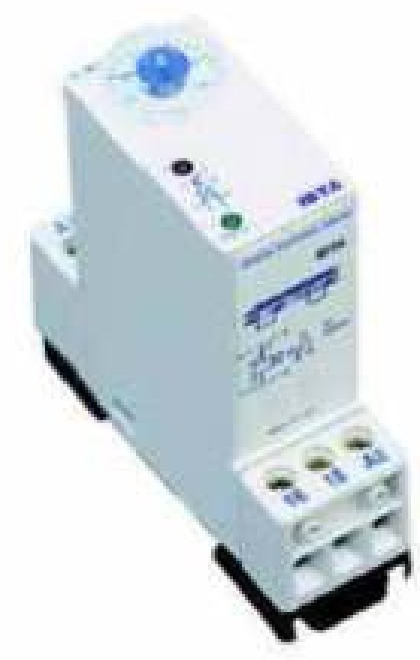

BCH IBT00 On Delay Electronic Timer (6s-180s, 1 C/O)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH IBT On Delay electronic timer: fixed voltage, fixed time range, large calibrated dial for easy and accurate time setting, LED indications for input supply and output status, surface and DIN rail mounting and 1 changeover relay output (SPDT, 7A @ 250V). Available for 240V AC, 110V AC, 24V AC/DC and 12V DC supply with 0.6-6, 3-30, 6-60 or 18-180 sec time ranges.
Specifications
| Cat Code (base) | IBT00 |
| Function | On Delay |
| Power Supply | 240VAC, 110 VAC, 24 VAC/DC and 12VDC |
| Operating Range | 85 to 110% of rated voltage (85 to 120% for 12V) |
| Time Range (Fixed) | 6S, 30S, 60S, 180S |
| Setting Accuracy | +/-5% of full scale at 25 deg C |
| Rated Frequency | 50/60 Hz |
| Repeat Accuracy | +/-0.5% or 50ms (whichever is greater) with constant parameters |
| Temperature Drift | +/-0.05% / deg C of full scale |
| Reset Time | 100ms |
| Minimum Pulse Duration | 30ms |
| Control Output | 7A @ 250V, 1 C/O (SPDT), resistive load |
| Operating Temperature | -20 deg C to +50 deg C |
| Storage Temperature | -25 deg C to +70 deg C |
| Size (W x H x D) | 24mm x 45mm x 75mm |
| Mechanical Life | 1 x 10^7 operations |
| Electrical Life | 1 x 10^5 operations with full load |
| Housing Material | Plastic |
| Mounting | Surface mounting & DIN rail mounting |
| Indication | LED for input supply and output status |
Ordering / Variants
Ordering code IBT00 + voltage code + 0 + time code (e.g. IBT00101 = 240V AC, 0.6-6 sec). Voltage codes: 1 = 240V AC, 2 = 110V AC, 3 = 24V AC/DC, 4 = 12V DC. Time codes: 1 = 0.6-6 sec, 2 = 3-30 sec, 3 = 6-60 sec, 4 = 18-180 sec.
Datasheet, certificates and quotation on request - info@west-velocity.com.
