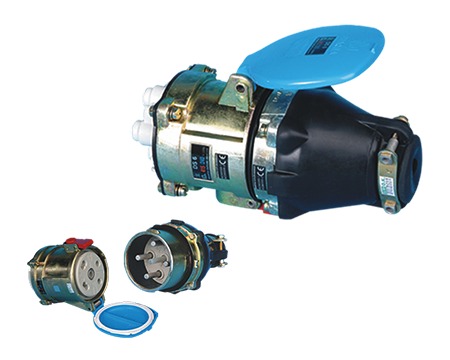

BCH DS3B7A1 DS3 Decontactor Panel Mounting Socket (32A, 3P+N+E, 415V, IP65)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH DS3 decontactor panel mounting socket DS3B7A1, 32A, 415/240V AC, 3P+N+E (5 pin), IP65, conforming to IEC 60309. DS Decontactors are plug & socket outlets with an integral switching device that make and break their rated current, eliminating separate interlocked switch socket outlets. Silver-tipped, spring-loaded butt-end contacts are self-aligning and self-wiping; live contacts are not accessible, the central earth pin makes first and breaks last, and the plug cannot be withdrawn while the socket is ON (built-in interlocking).
Specifications
| Cat Code | DS3B7A1 |
| Product Type | DS Decontactor - Panel Mounting Socket |
| Type | DS3 |
| Standard | IEC : 309-1 / IEC 60309 |
| Voltage | 415/240V AC |
| Contacts | 3P+N+E |
| Position Code | 7A1 |
| Rated Current (Ie) | 32A |
| Insulation Voltage (Ui) | 600V |
| Thermal Rating (Ith) | 50A |
| Making & Breaking Current at 0.6 p.f. (as per IEC : 309-1) | 1.25xIe |
| Breaking Capacity at 0.6 p.f. - 380/440V AC | 50A |
| Breaking Capacity at 0.6 p.f. - 500V AC | 40A |
| Breaking Capacity at 0.6 p.f. - 600V AC | 30A |
| Breaking Capacity at 0.6 p.f. - 300V DC | 25A |
| AC20 (IEC 60947-3) | 50A |
| AC21 (IEC 60947-3) | 32A |
| AC22 (IEC 60947-3) | 16A |
| AC23 (IEC 60947-3) | 5.5A |
| AC 3 (IEC 60947-4-1) | 3HP |
| Thermal Time Constant (minutes) | 20 |
| Millivolt Drop at Rated Current | 25 |
| Terminal Capacity - Rigid Conductor (mm2) | 10 |
| Max. Cable Size with Dowell Lugs (mm2) | 16 |
| Dowell Lugs Cat. No. | WPC-2 |
| IP Category | IP 65 |
| Conduit Entry on Wall Box (as per IS : 1653-1964) | 31.8x 1.588P |
Ordering / Variants
Matching plug: DS3A7A1. Other voltage/contact positions available on request.
