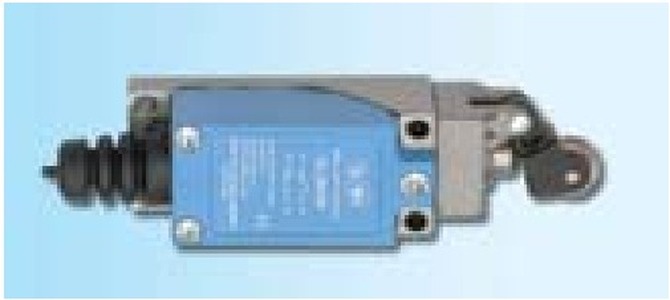

BCH DLSMAR Mini Limit Switch - General Purpose (1NO+1NC, IP64)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH DLSMAR mini limit switch, General purpose, standard (12.5 x 3.8 mm stainless steel roller). BCH Mini Limit Switches deliver continuous and consistent performance even in highly contaminated atmospheres and in high shock and vibration applications. Compact design, crossbar contact method, dual cutoff circuit with minimum chatter and bounce, zinc die cast base with polyamide cover, dust-proof, waterproof and oil resistant construction; IP 64, 1NO+1NC, 5A thermal current.
Specifications
| Cat Code | DLSMAR |
| Operating Head | General purpose, standard (12.5 x 3.8 mm stainless steel roller) |
| Reference Standards | IS 13947-5-1, EN 60947-5-1 |
| Operating Temperature | -20 to +60 deg. C |
| Rated Operating Voltage (Ue) | 250V |
| Rated Insulation Voltage (Ui) | 250V |
| Rated Impulse Withstand Voltage (Uimp) | 2.5kV |
| Rated Frequency | 50/60 Hz |
| Rated Thermal Current (Ith) | 5A |
| Resistive Load | 5A, 250V AC; 0.4 A, 125V DC |
| AC-15 Duty | 3A, 125V AC; 2A, 250V AC |
| DC-13 Duty | 0.1A, 125 V DC |
| Conditional Short Circuit Current | 100A |
| Short Circuit Protection Device | 10A fuse |
| Contact Combination | 1 NO + 1 NC |
| Mechanical Life | 10 million operations |
| Frequency of Operation | 7200 operations / hr |
| Electrical Life | 0.3 million operations |
| IP Category | IP 64 |
| Pollution Degree | 3 |
| Termination | 1.5 sq. mm. cable |
| Tightening Torque | 0.6 Nm |
| Shock Resistance (IEC 68-2-27) | 10g in free condition, 30 g in fully operated condition |
| Vibration Resistance (IEC 68-2-6) | Max. 55 Hz |
| Construction | Zinc die cast base & high end polyamide cover |
| Operating Force (max.) | 1000 gms (9.81 N) |
| Pre Travel (max.) | 1.5 mm |
| Over Travel (min.) | 4.3 mm |
| Total Travel (min.) | 5.8 mm |
Typical Applications
Machine tools; material handling; food & beverages; textile machinery; conveyors; packaging machinery
Datasheet, certificates and quotation on request - info@west-velocity.com.
