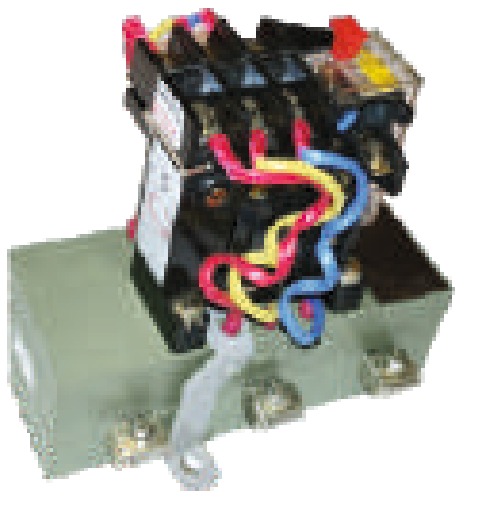

BCH CT4MC305ANA3C Citation CT Operated Overload Relay (84.60-135.00 A)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH Citation CT operated thermal overload relay CT4MC305ANA3C for motor currents of 84.60 to 135.00 A, with independent (separate) mounting and trip class 30. It includes built-in single phasing protection, ambient temperature compensation and auto / manual selectable reset.
Specifications
| Cat Code | CT4MC305ANA3C |
| Relay Type | Citation - CT Operated |
| Relay Range (A) | 84.60 to 135.00 |
| Tripping Class (IEC 947-4-1) | 30 |
| Fixing | Independent mounting |
| Storage Temperature | -40 to +60 deg C |
| Operating Temperature | -10 to +55 deg C |
| Rated Insulation Voltage Ui | 690 V |
| Switching Frequency | 15 Op./Hr |
| Auxiliary Contacts | 1C/O |
| Reset Type | Auto / manual selectable |
| Rated Voltage at NO/NC Contacts | 600 V |
| Rated Operational Current AC15 | 240V: 2.5 A; 440V: 1.4 A; 500V: 1.2 A |
| Rated Operational Current DC13 (220V) | 0.12 A |
| gG Class Protection Fuse | 4 A |
| Features | Built-in single phasing protection, ambient temperature compensation, test button for checking tripping mechanism, field convertible auto / manual reset, snap on cover, contactor mounting & separate mounting |
Ordering / Variants
CT operated range CT1 to CT8 (24.40 A to 600 A).
Datasheet, certificates and quotation on request - info@west-velocity.com.
