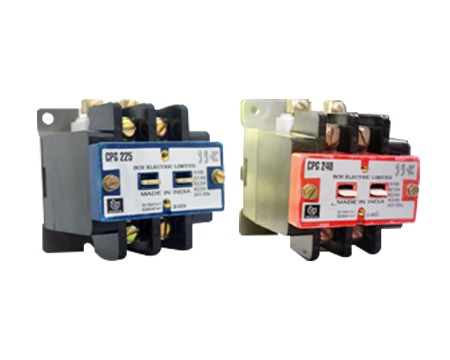

BCH CPG212 NHD 2-Pole Contactor (12A AC-3 at 240V)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH NHD series CPG 212 2-pole power contactor rated 12 A in AC-3 duty at 240V AC (20 A thermal current). The CPG contactor is based on the proven NHD design and is built for single-phase pump control, withstanding harsh field voltage fluctuations; a wide band coil (160-220V AC) is available. Weld resistant silver alloy contacts, encapsulated coil and generous terminal capacity; spare coil and contact kit available.
Specifications
| Cat. No. | CPG212■ (■ = coil voltage code) |
| Number of Poles | 2 |
| Thermal Current (Ith) | 20 A |
| AC-3 Rating at 240V AC | 12 A |
| Standard | IEC 60947-4-1 |
| Wide Band Coil | 160-220V AC |
| Standard Coil Voltages (AC) | 24V, 48V, 110V, 220/240V |
| Auxiliary Contacts | 1NO+1NC, 2NO or 2NC |
| Max. Frequency of Operation | 600 operations per hour |
| Rated Ambient Temperature | 55°C |
Ordering / Variants
Standard coil voltages (AC): 24V, 48V, 110V, 220/240V; wide band coil 160-220V AC.
Typical Applications
Single phase pump control
Datasheet, certificates and quotation on request - info@west-velocity.com.
