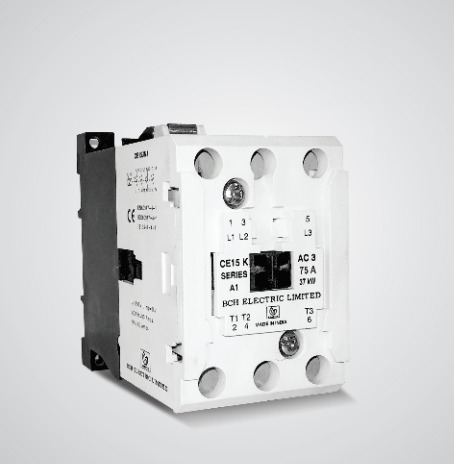

BCH CE15KN3 Freedom AC Contactor (75A AC-3, 37kW)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH Duros Freedom series CE15KN3 3-pole AC contactor rated 75 A in AC-3 duty at 380/415V 50Hz (37/37 kW), built to IS/IEC 60947-4-1. 65 mm frame with 59 A AC-4 rating, 80 A thermal current and 1.3 million AC-3 electrical operations. Freedom contactors offer AC and DC control, a snap-open design for easy inspection, low VA burden coils and Type-2 coordination; DIN rail mounting up to 75 A.
Specifications
| Cat. Reference | CE15KN3* (* = coil voltage suffix) |
| Rated Current AC-3 at 380/415V 50Hz (Ie) | 75 A |
| Standard Power Rating at 380V/415V 50Hz | 37/37 kW |
| Electrical Endurance at rated current AC-3 | 1.3 million |
| Max. Frequency of No-load Operation | 600 op/h |
| Frame Size | 65 mm |
| Number of Poles | 3 |
| Mounting Dimensions | M5 55x95 mm |
| Weight | 1.28 kg |
| Mechanical Durability | 10 million |
| Operational Voltage (Ue) | 660 V |
| Insulation Voltage (Ui) | 690 V |
| Impulse Voltage Withstand | 6 kV |
| Thermal Current (Ith) | 80 A |
| Connections | 25 mm² |
| AC-1 Rating at 380/415V 50Hz | 80 A |
| AC-4 Rating at 380/415V 50Hz | 59 A |
| Electrical Life at rated current AC-4 | 34000 ops |
| AC-4 Rating for 200000 operations | 34 A |
| Stator Current Rating AC-2 (≤55°C, 100% DF) | 73 A |
| Rotor Duty Rating, Delta Connected (≤40°C) 100/60/40/20% DF | 126 / 163 / 200 / 283 A |
| Max. Rotor Voltage | Starting & Inching: Delta 1160V, Star 1380V; Starting & Plugging: Delta 580V, Star 690V |
| Transformer Primary Switching 500V AC | 24 A |
| Capacitor Switching (single bank only) 380/400V 3ph | 40 kVAR |
| Coil Consumption Pick-up / Seal | 230 VA / 28 VA |
| Standard | IS/IEC 60947-4-1 |
| Operating Temperature | -20°C to +60°C |
| Operating Altitude | 2000 m |
| Humidity | 50% RH at 60°C; 95% RH at 40°C |
| Vibration | 5 to 100 Hz (0.7g in x,y,z plane) |
| Operating Position | ±30° |
Ordering / Variants
AC coil suffix: 24V U, 48V W, 110V A, 220V B, 240V K, 380V L, 415V M, 440V C, 550V D (catalogue also lists 42V R). DC coil suffix: 24V U3, 48V W3, 110V A3, 220V B3 (factory-fitted DC control only; AC and DC coils are not interchangeable at site).
Datasheet, certificates and quotation on request - info@west-velocity.com.
