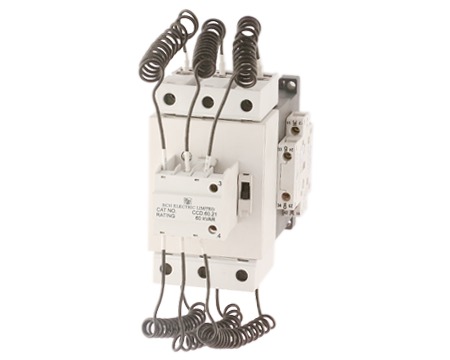

BCH CCD.50.21 Capacitor Duty Contactor (50 kVAR at 415V)
BCH CCD.50.21 capacitor duty contactor for switching a 50 kVAR capacitor bank at 380/400V and 415V (30 kVAR at 230/240V), 3-pole, conforming to IS/IEC 60947-4-1 (AC-6b). To limit capacitor inrush current, it is fitted with a block of three early-make auxiliary contacts in series with six damping resistors (two per phase); after damping, the main contacts close and the auxiliary contacts are disconnected through a de-latching mechanism. 240 operations per hour and 100000 operations electrical endurance at 415V; 2NO+1NC auxiliary contacts as standard.
Specifications
| Catalogue Reference | CCD.50.21.* (* = coil voltage code) |
| Conformance to Standards | IS/IEC 60947-4-1 (AC-6b utilization category) |
| Poles | 3P, 415V AC, 50Hz |
| Protection | IP 20 |
| Pollution Degree | III |
| Ambient Temperature, Service | -5 to +55 Deg. C |
| Ambient Temperature, Storage | -25 to +70 Deg. C |
| Rated Operational Voltage (Ue) | 415 V |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Operational Power at ≤55°C, 50Hz, 230/240V | 30 kVAR |
| Operational Power at ≤55°C, 50Hz, 380/400V | 50 kVAR |
| Operational Power at ≤55°C, 50Hz, 415V | 50 kVAR |
| Max. Operations per Hour | 240 |
| Electrical Endurance at Nominal Load at 415V | 100000 operations |
| Short Circuit Protection | 125A |
| Weight | 0.565 kg |
| Tightening Torque on Cable End | 8 Nm |
| Cable Termination (1 conductor), Flexible with Lug / Solid | 4 to 50 mm² / 4 to 50 mm² |
| Coil Consumption at 50Hz, Inrush / Sealed | 250 VA / 19 VA |
| Aux. Contacts as Standard | 2NO+1NC |
Ordering / Variants
Coil voltage code: 24V U, 48V W, 110V A, 220V B, 240V K, 380V L, 415V M, 440V C, 550V D.
Typical Applications
Switching of single and multiple capacitor banks (power factor correction)
