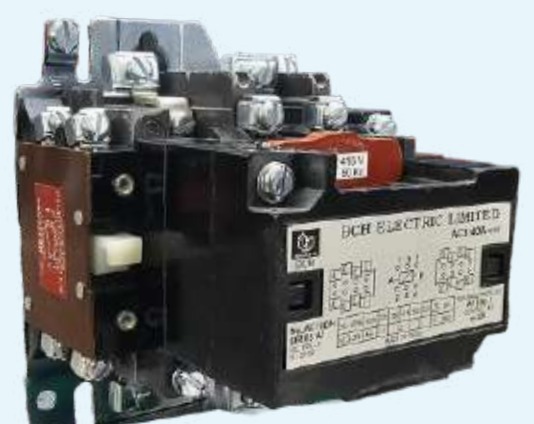

BCH C4NE Citation 3-Pole Contactor (32A AC-3, 15kW)
BCH Citation series 3-pole contactor size C4, rated 32 A / 15 kW in AC-3 duty at 415V with AC control. Citation contactors have an encapsulated plug-in coil, front accessibility for contact and coil inspection and replacement, a wide operating temperature range of -5°C to +55°C, and are suitable for AC-4 duty applications. Typical uses include mill duty, crane control, motor control centres, switching of solenoids, capacitor banks and lighting & heating circuits.
Specifications
| Cat. No. (without aux. contact) | C4NE00■ |
| Size | C4 |
| Number of Poles | 3 |
| Control | AC |
| AC-3 Rating at 415V | 32 A / 20 HP / 15 kW |
| Ambient Operating Temperature | -5°C to +55°C |
| Standard | IEC-158 |
Ordering / Variants
Aux. contact versions: C4NE22■ (2NO+2NC), C4NE11■ (1NO+1NC), C4NE00■ (without aux. contact); ■ = coil voltage code. AC suffix: 110V A, 220V B, 240V K, 380V L, 415V M, 440V C, 550V D.
Typical Applications
Mill duty, crane control, motor control centres, switching of solenoids, capacitor banks, lighting & heating circuits
Datasheet, certificates and quotation on request - info@west-velocity.com.
