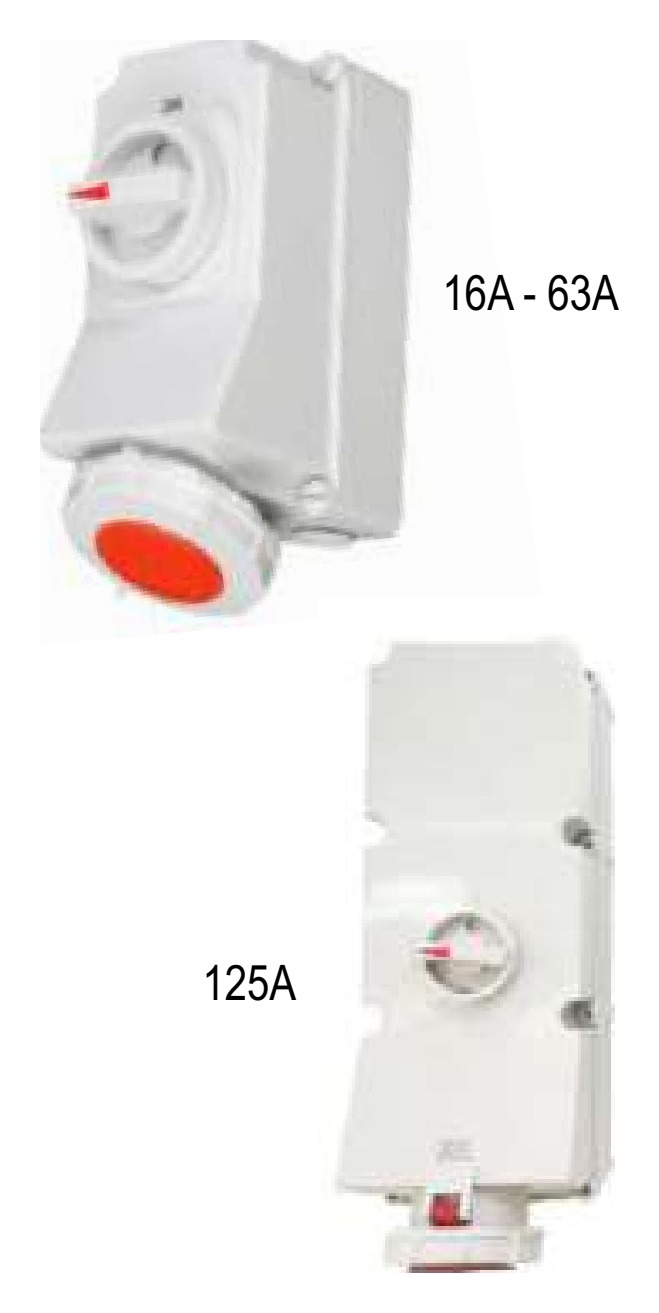

BCH BPX4MIV572 Interlocked Switched Socket, Vertical (125A, 5P, 415V, IP67)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH BPX series polycarbonate socket outlet with switch and mechanical interlock - vertical type, 125A, 5 pole, 415V~, IP67, conforming to IEC 60309-2. BPX products are tested for temperature rise, mechanical life, flame retardance, surge voltage, vibration, high and low temperature, ingress protection and mechanical impact. Features include double screw type terminals, soft contact technology to reduce spark on insertion or pull-out, nickel plated contacts and cable entry from side or bottom.
Specifications
| Cat Code | BPX4MIV572 |
| Product Type | Socket Outlet with Switch and Mechanical Interlock - Vertical Type |
| Series | BPX Range - Polycarbonate Plug & Socket |
| Rated Current | 125A |
| Poles | 5 |
| Rated Voltage | 415V~ |
| Ingress Protection | IP67 |
| Standard | EN/IEC 60309-1 & 2 |
| Resistant to Temperature | -25 °C to +40 °C |
| Glow Wire Test | Body Shell - 650 °C ; Inner Core - 850 °C |
| Dimensionally Stable Test | 100 °C for 1 Hour |
| Insulation Resistance | 500Vdc - 1min ( > 5m Ohms) |
| Di-electric Strength | 2000V~ |
| Version | 125A (Without DIN Rail) |
Typical Applications
Medical equipments, airport, shopping mall, metro, railway, commercial building, laundry machine
Datasheet, certificates and quotation on request - info@west-velocity.com.
