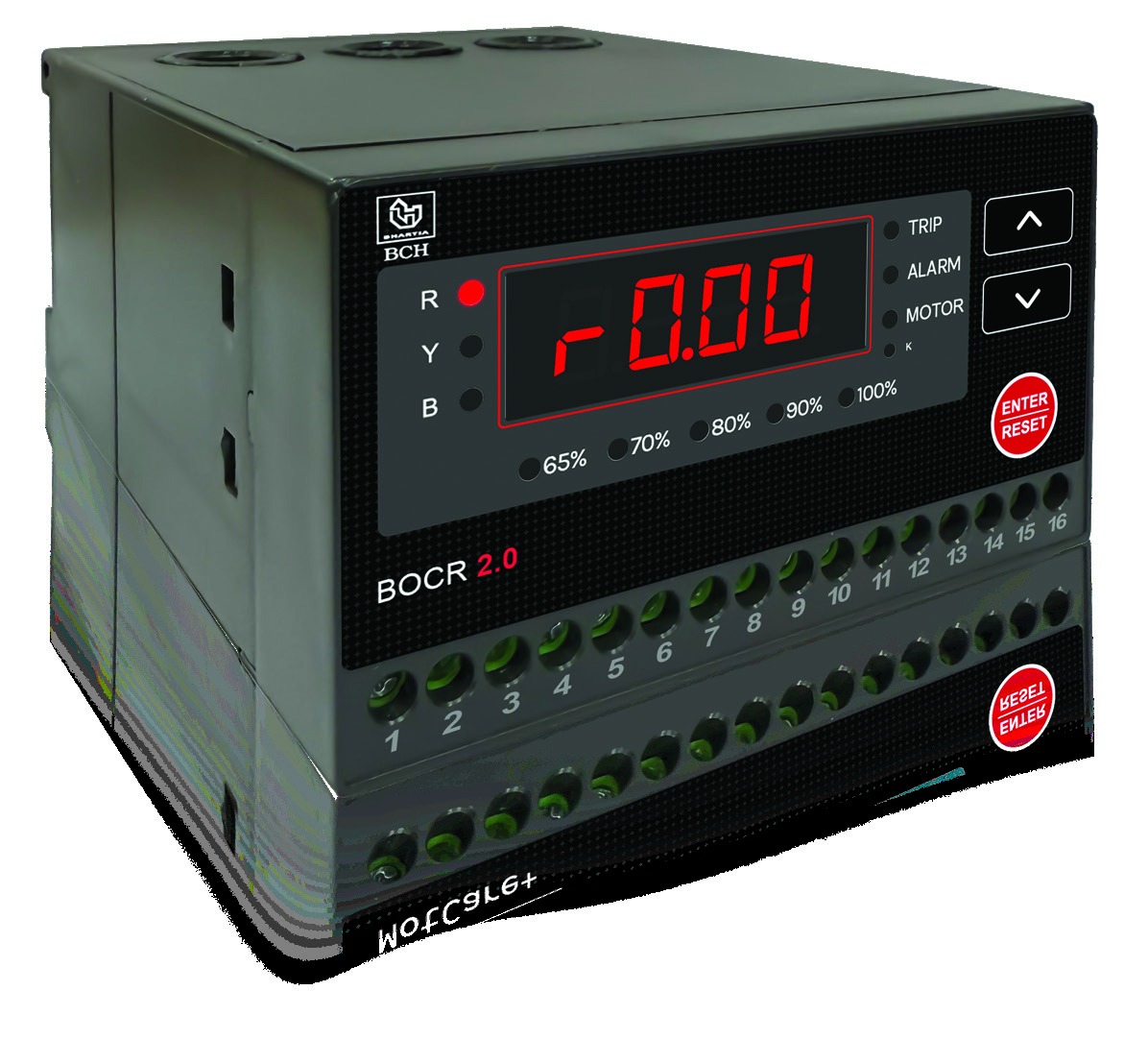

BCH BOCR2.0-60N BOCR 2.0 Motor Protection Relay (2.5 to 60A, no ZCT)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH BOCR 2.0 microcontroller based motor protection relay for LV & MV motors, full load current range 2.5 to 60A, without ZCT/CBCT. It has 3 output relays for trip and alarm and protects against overload, under current, short circuit, locked rotor, stall, unbalance, phase loss, phase reversal and CB failure. Auxiliary supply 85V to 280V AC/DC; 35 mm DIN-rail or panel mounting.
Specifications
| Cat Code | BOCR2.0-60N |
| Product Series | BOCR 2.0 |
| Full Load Current Range | 2.5 to 60A |
| Leakage Detection | without ZCT/CBCT |
| Operational Current | 0.5 - 8.0 x IFL |
| Protection | Overload, Under Current, Short Circuit, Lock Rotor, Stall, Unbalance, Phase Loss, Phase Reversal, Earth Fault (ZCT model), CB Failure |
| Display | LED type, with R/Y/B, TRIP, ALARM and MOTOR LEDs |
| Auxiliary Supply | 85V to 280V AC/DC (code A) |
| DO Contacts | 1C/O + 2NO: 5A @ 250 VAC / 24VDC (3 output relays for trip and alarm) |
| DO Reset | Automatic / Manual |
| Frequency Range | 50 / 60 Hz |
| Accuracy - Trip Time | ± 5% (or ± 100 mSec), whichever is higher |
| Accuracy - Trip Current (Phase / Earth) | ± 5% (or ± 0.020 Amp), whichever is higher |
| Mounting | 35 mm DIN-rail / panel mount |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -10°C to 85°C |
| Connection for Current | Penetration / tunnel type |
| Connection for Others (aux supply, relay contacts) | Screwed terminal |
Ordering / Variants
Ordering code BOCR 2.0 - current range (05: 0.25-5A / 60: 2.5-60A) - leakage detection (N: no ZCT/CBCT, Z: with ZCT/CBCT) - auxiliary supply (A: 85V-280V AC/DC).
