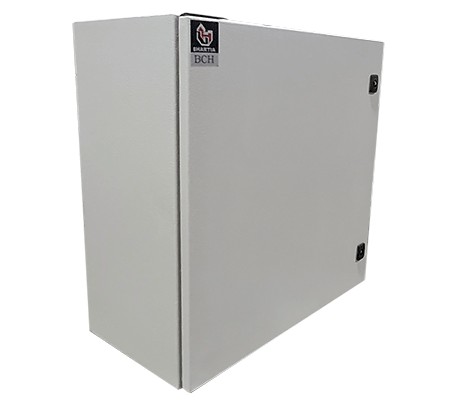

BCH BIL-50150 Bhartia IP55 Wall Mounted Enclosure (400 x 500 x 150 mm)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH BIL-50150 Bhartia wall mounted enclosure, 400 mm wide x 500 mm high x 150 mm deep, with 1.2mm CRCA body, 1.2mm CRCA front door, 2.0mm CRCA gland plate and 2.0mm GPSP mounting plate (340 x 476 mm). Powder coated over Zn phosphating, colour Structure RAL-7035; protection IP 55 as per IEC 60529: 2013 and mechanical impact IK 10 as per IEC 62262: 2002. Supplied with hinged door (PU Foam gasket), gland plate, mounting plate and triangular insert cam lock; 1 door, door opening 180°.
Specifications
| Cat Code | BIL-50150 |
| Size (W x H x D) | 400 x 500 x 150 mm |
| Width | 400mm |
| Height | 500mm |
| Depth | 150mm |
| Mounting Plate Size (W x H) | 340 x 476 mm |
| Enclosure Body Thickness / Material | 1.2mm CRCA |
| Front Door Thickness / Material | 1.2mm CRCA |
| Gland Plate Thickness / Material | 2.0mm CRCA |
| Mounting Plate Thickness / Material | 2.0mm GPSP |
| Surface Finish | Enclosure Body, door and gland plate - Powder coated with Tri-cationic Zn Phosphating; Mounting Plate- GPSP finish |
| Colour | Structure RAL-7035 |
| Supplied With | Enclosure with Hinged door (PU Foam gasket); Gland Plate; Mounting Plate; Triangular insert Cam lock |
| Protection Category | IP 55 as per IEC 60529: 2013 |
| Mechanical Impact | IK 10 as per IEC 62262: 2002 |
| No. of Doors | 1 |
| No. of Locks | 2 |
| No. of Gland Plates | 1 |
| Door Opening | 180° |
| Weight | 10 kg |
Datasheet, certificates and quotation on request - info@west-velocity.com.
