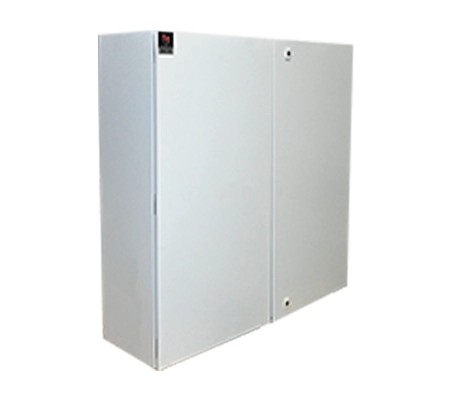

BCH BIL-40380 Bhartia 2.0 Double Door Enclosure (IP55, 1000 x 800 x 210 mm)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH BIL-40380 Bhartia Enclosure 2.0 wall mounted enclosure, 1000 mm wide x 800 mm high x 210 mm deep, with 1.6mm CRCA body, 2.0mm CRCA front door, 1.6mm CRCA gland plate and 2.5mm GPSP mounting plate (950 x 776 mm). Powder coated over Zn phosphating, colour Structure RAL-7035; protection IP 55 as per IEC 60529: 2013 and mechanical impact IK 10 as per IEC 62262: 2002. Supplied with hinged door (PU Foam gasket), gland plate, mounting plate and double-bit insert cam lock; 2 doors, door opening 120°.
Specifications
| Cat Code | BIL-40380 |
| Size (W x H x D) | 1000 x 800 x 210 mm |
| Width | 1000mm |
| Height | 800mm |
| Depth | 210mm |
| Mounting Plate Size (W x H) | 950 x 776 mm |
| Enclosure Body Thickness / Material | 1.6mm CRCA |
| Front Door Thickness / Material | 2.0mm CRCA |
| Gland Plate Thickness / Material | 1.6mm CRCA |
| Mounting Plate Thickness / Material | 2.5mm GPSP |
| Surface Finish | Enclosure Body, door and gland plate - Powder coated with Tri-cationic Zn Phosphating; Mounting Plate- GPSP finish |
| Colour | Structure RAL-7035 |
| Supplied With | Enclosure with Hinged door (PU Foam gasket); Gland Plate; Mounting Plate; Double-bit insert Cam lock |
| Protection Category | IP 55 as per IEC 60529: 2013 |
| Mechanical Impact | IK 10 as per IEC 62262: 2002 |
| No. of Doors | 2 |
| No. of Locks | 2 |
| No. of Gland Plates | 2 |
| Door Opening | 120° |
| Weight | 51.0 kg |
Datasheet, certificates and quotation on request - info@west-velocity.com.
