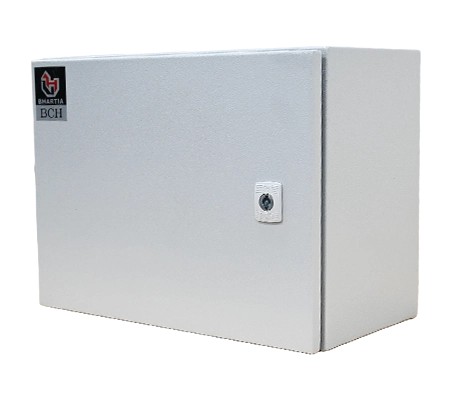

BCH BIL-40010 Bhartia 2.0 Single Door Enclosure (IP66, 200 x 300 x 150 mm)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH BIL-40010 Bhartia Enclosure 2.0 wall mounted enclosure, 200 mm wide x 300 mm high x 150 mm deep, with 1.2mm CRCA body, 1.2mm CRCA front door, 1.6mm CRCA gland plate and 2.0mm GPSP mounting plate (150 x 276 mm). Powder coated over Zn phosphating, colour Structure RAL-7035; protection IP 66 as per IEC 60529: 2013 and mechanical impact IK 10 as per IEC 62262: 2002. Supplied with hinged door (PU Foam gasket), gland plate, mounting plate and double-bit insert cam lock; 1 door, door opening 120°.
Specifications
| Cat Code | BIL-40010 |
| Size (W x H x D) | 200 x 300 x 150 mm |
| Width | 200mm |
| Height | 300mm |
| Depth | 150mm |
| Mounting Plate Size (W x H) | 150 x 276 mm |
| Enclosure Body Thickness / Material | 1.2mm CRCA |
| Front Door Thickness / Material | 1.2mm CRCA |
| Gland Plate Thickness / Material | 1.6mm CRCA |
| Mounting Plate Thickness / Material | 2.0mm GPSP |
| Surface Finish | Enclosure Body, door and gland plate - Powder coated with Tri-cationic Zn Phosphating; Mounting Plate - GPSP finish |
| Colour | Structure RAL-7035 |
| Supplied With | Enclosure with Hinged door (PU Foam gasket); Gland Plate; Mounting Plate; Double-bit insert Cam lock |
| Protection Category | IP 66 as per IEC 60529: 2013 |
| Mechanical Impact | IK 10 as per IEC 62262: 2002 |
| No. of Doors | 1 |
| No. of Locks | 1 |
| No. of Gland Plates | 1 |
| Door Opening | 120° |
| Weight | 3.8 kg |
Datasheet, certificates and quotation on request - info@west-velocity.com.
