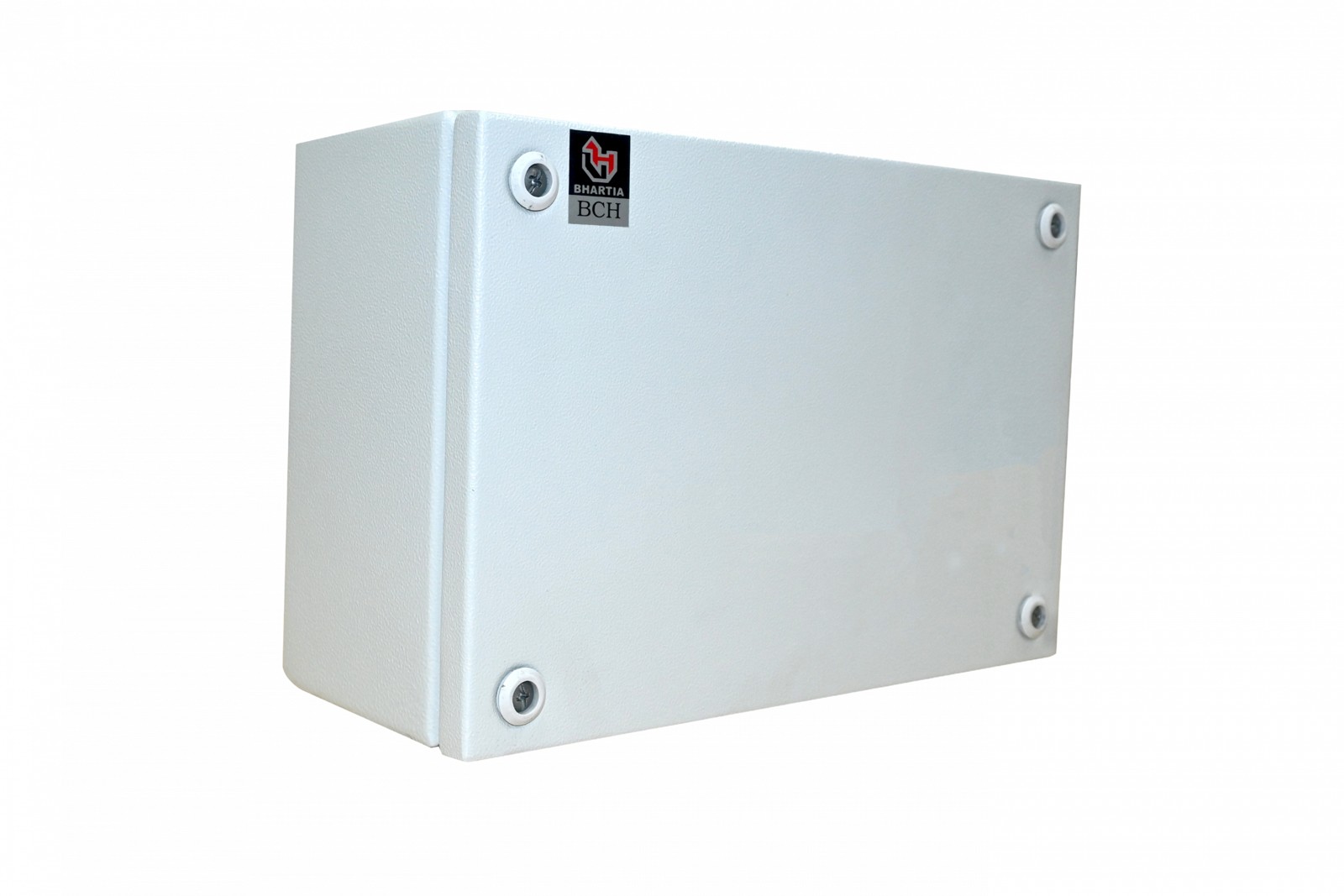

BCH BIL-30040 Terminal Box 2.0 (IP66, 300 x 200 x 80 mm)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH BIL-30040 Terminal Box 2.0, 300 mm wide x 200 mm high x 80 mm deep, with 1.2mm CRCA body and 1.2mm CRCA front cover. Powder coated over Zn phosphating, colour Structure RAL-7035; protection IP 66 as per IEC 60529: 2013 and mechanical impact IK 10 as per IEC 62262: 2002. Supplied as enclosure with cover (PU Foam gasket) and quarter turn screw with screw retainer.
Specifications
| Cat Code | BIL-30040 |
| Size (W x H x D) | 300 x 200 x 80 mm |
| Width | 300mm |
| Height | 200mm |
| Depth | 80mm |
| Enclosure Body Thickness / Material | 1.2mm CRCA |
| Front Cover Thickness / Material | 1.2mm CRCA |
| Surface Finish | Enclosure Body and Cover - Powder coated with Tri-cationic Zn Phosphating |
| Colour | Structure RAL-7035 |
| Supplied With | Enclosure with Cover (PU Foam gasket); Quarter Turn Screw with Screw Retainer |
| Protection Category | IP 66 as per IEC 60529: 2013 |
| Mechanical Impact | IK 10 as per IEC 62262: 2002 |
| Weight | 3.0 kg |
Datasheet, certificates and quotation on request - info@west-velocity.com.
