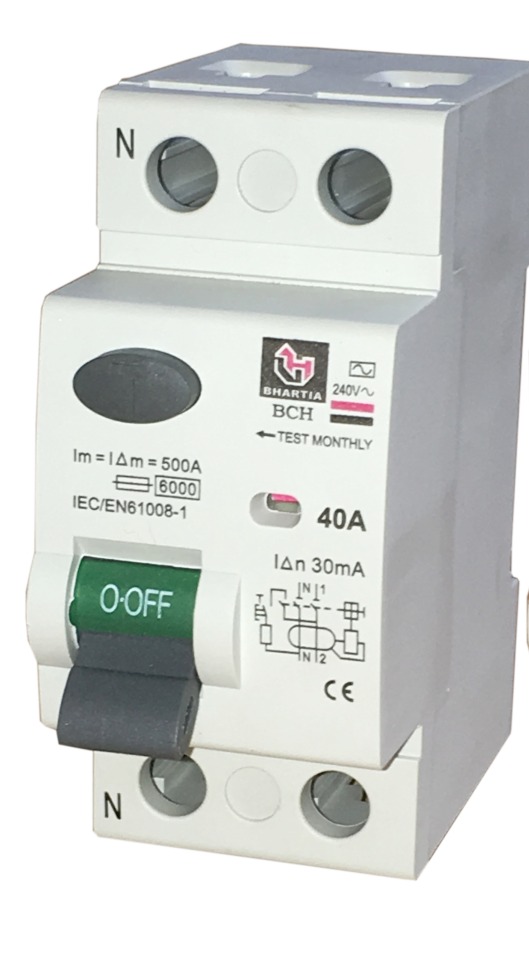

BCH BCHRCB030DPC40 Residual Current Circuit Breaker RCCB (2 Pole, 40A, 30mA)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH 2 pole residual current circuit breaker, 40A rated current with 30mA sensitivity, conforming to IS 12640 (Part 1) and IEC/EN 61008-1. It detects and trips against leakage current, protecting human life against electric shock and the electrical installation against fire. With 30mA sensitivity it provides a high level of protection to living beings against direct & indirect contact. Finger proof IP20 terminals, dual termination for busbar or wire, and a test button for monthly checks.
Specifications
| Cat Code | BCHRCB030DPC40 |
| Description | RCCB DOUBLE POLE 40A - 30mA |
| Poles | 2 Pole, DP (1P+N) |
| Rated Current | 40A |
| Rated Sensitivity (IΔn) | 30mA |
| Conformance to Standards | IS 12640 (Part 1), IEC/EN 61008-1 |
| Rated Voltage Un | 240V |
| Rated Impulse Withstand Voltage (Uimp) | 4 KV |
| Rated Conditional Short-Circuit Current (Inc) | 6kA |
| IP Category | IP20 (finger proof terminals) |
| ISI Marking | Yes |
| Type | AC |
| Termination | Dual termination, suitable for busbar and/or wire |
| Screws | Combi head screws (standard as well as Philips head screw driver) |
| Test Button | Checks healthiness by creating a virtual electrical fault; recommended to test once every month |
Ordering / Variants
Available in 2 Pole and 4 Pole, 25A / 40A / 63A, 30mA / 100mA / 300mA. A 10kA version is also listed as BCHRCBR030DPC40.
