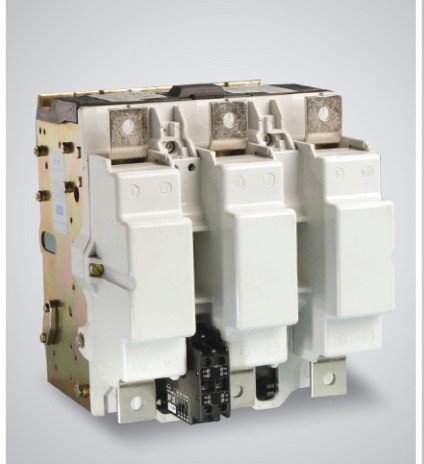

BCH BCH62 Freedom AC Contactor (700A AC-3, 400kW)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH Duros Freedom series BCH62 heavy-duty 3-pole AC contactor rated 700 A in AC-3 duty at 380/415V 50Hz (375/400 kW), built to IS/IEC 60947-4-1. 280 mm frame with 1000 A thermal current, 700 A AC-4 rating and 2(60x5) mm busbar connections. Part of the Freedom range covering 6 A to 1200 A (AC-3), with AC and DC control options.
Specifications
| Cat. Reference | BCH62.3.22* (* = coil voltage suffix) |
| Rated Current AC-3 at 380/415V 50Hz (Ie) | 700 A |
| Standard Power Rating at 380V/415V 50Hz | 375/400 kW |
| Electrical Endurance at rated current AC-3 | 0.6 million |
| Max. Frequency of No-load Operation | 300 op/h |
| Frame Size | 280 mm |
| Number of Poles | 3 |
| Mounting Dimensions | M10 175x280 mm |
| Weight | 26.4 kg |
| Mechanical Durability | 5-10 million |
| Operational Voltage (Ue) | 1000 V |
| Insulation Voltage (Ui) | 1000 V |
| Impulse Voltage Withstand | 8 kV |
| Thermal Current (Ith) | 1000 A |
| Connections | 2(60x5) mm (busbar) |
| AC-1 Rating at 380/415V 50Hz | 1000 A |
| AC-4 Rating at 380/415V 50Hz | 700 A |
| Electrical Life at rated current AC-4 | 6000 ops |
| AC-4 Rating for 200000 operations | 185 A |
| Stator Current Rating AC-2 (≤55°C, 100% DF) | 700 A |
| Rotor Duty Rating, Delta Connected (≤40°C) 100/60/40/20% DF | 1400 / 1600 / 1890 / 2370 A |
| Max. Rotor Voltage | Starting & Inching: Delta 1700V, Star 2000V; Starting & Plugging: Delta 850V, Star 1000V |
| Transformer Primary Switching 500V AC | 315 A |
| Capacitor Switching (single bank only) 380/400V 3ph | 350 kVAR |
| Coil Consumption Pick-up / Seal | 1600 VA / 25 VA |
| Standard | IS/IEC 60947-4-1 |
| Operating Temperature | -20°C to +60°C |
| Operating Altitude | 2000 m |
| Humidity | 50% RH at 60°C; 95% RH at 40°C |
| Vibration | 5 to 100 Hz (0.7g in x,y,z plane) |
| Operating Position | ±30° |
Ordering / Variants
Coil voltage code: AC 110, 220 (220/240V), 380 (380/415V), 440; DC 110, 220 (coil voltage table). The catalogue ordering table for BCH55-BCH64 also lists DC 380 and 440.
Datasheet, certificates and quotation on request - info@west-velocity.com.
