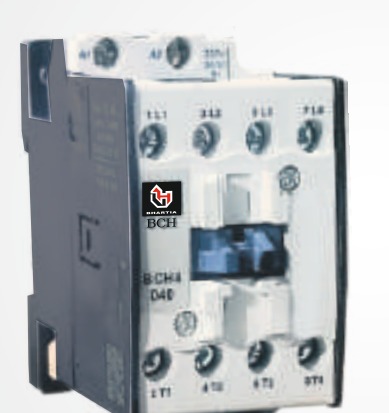

BCH BCH4040 Freedom 4-Pole Contactor (40A AC-1, 22A AC-3)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH Freedom series BCH4040 4-pole contactor with 40 A conventional thermal current (AC-1 at 40°C) and 22 A AC-3 motor duty at 415V 50Hz, as per IS/IEC 60947-4-1. Rated insulation voltage 690 V; coil voltages 110, 220, 240 and 415 V. The 4-pole Freedom range (20 A to 500 A AC-1) offers compact, modular construction, energy-saving coils (wide band coil in 40 A to 100 A AC-1) and compact mechanical interlocking.
Specifications
| Catalogue No. | BCH4040■ (■ = coil voltage suffix) |
| Number of Poles | 4 |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Operational Voltage (Ue) | 415 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Conventional Thermal Current Ith / AC-1 at 40°C | 40 A |
| Motor Duty 3ph 415V 50Hz, AC-3 | 22 A |
| Operating Temperature | -20°C to +55°C |
| Built-in Auxiliary Contacts | - |
| Closing Time | 10-12 ms |
| Opening Time | 7-18 ms |
| Coil Voltages Available (50Hz) | 110, 220, 240, 415 V |
| Coil Pick-up / Hold-on | 68 VA / 11 VA |
| Limits of Operation, Pick-up | 55-120 % Ue |
| Limits of Operation, Drop-off | 30-50 % Ue |
| Overall Dimensions H x W x D | 83 x 45 x 88 mm |
| Mounting Dimensions H x W | (60-65-70) x 35 mm |
| Main Terminal Capacity, with Lug | 1 x 6 mm² |
| Main Terminal Capacity, Solid / Multistrand Conductors | 2 x 4 / 2 x 2.5 mm² |
| Standard | IS/IEC 60947-4-1 |
Ordering / Variants
Coil suffix: 110V A, 220V B, 240V K, 415V M. Auxiliary contacts are ordered separately as add-on blocks.
Datasheet, certificates and quotation on request - info@west-velocity.com.
