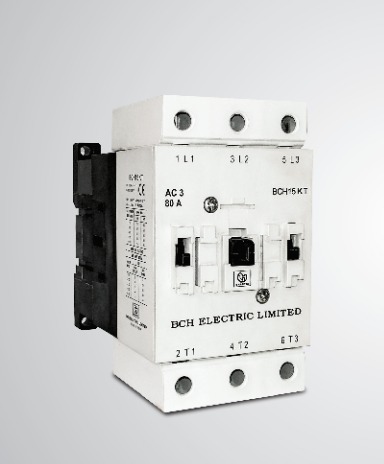

BCH BCH15LT Freedom AC Contactor (95A AC-3, 47kW)

Brand: BCH

SKU: BCH15LT.3.11

MPN: BCH15LT.3.11

Made in India

Contact for pricing

Available in Saudi Arabia

Wishlist

Chat on WhatsApp Request a Quotation by Email info@west-velocity.com

Available in 🇸🇦 Saudi Arabia

BCH Duros Freedom series BCH15LT 3-pole AC contactor rated 95 A in AC-3 duty at 380/415V 50Hz (45/47 kW), built to IS/IEC 60947-4-1. 79 mm frame, 125 A thermal current (AC-1), 90 A AC-4 rating and 1000 V operational voltage. Freedom contactors feature a snap-open design for easy inspection, low VA burden coils and self-lifting terminal screws, and are tested for Type-2 coordination.

Specifications

Cat. Reference	BCH15LT.3.11* (* = coil voltage suffix)
Rated Current AC-3 at 380/415V 50Hz (Ie)	95 A
Standard Power Rating at 380V/415V 50Hz	45/47 kW
Electrical Endurance at rated current AC-3	0.8 million
Max. Frequency of No-load Operation	3000 op/h
Frame Size	79 mm
Number of Poles	3
Mounting Dimensions	M5 70x100 mm
Weight	1.8 kg
Mechanical Durability	10 million
Operational Voltage (Ue)	1000 V
Insulation Voltage (Ui)	1000 V
Impulse Voltage Withstand	8 kV
Thermal Current (Ith)	125 A
Connections	50 mm²
AC-1 Rating at 380/415V 50Hz	125 A
AC-4 Rating at 380/415V 50Hz	90 A
Electrical Life at rated current AC-4	20000 ops
AC-4 Rating for 200000 operations	31 A
Stator Current Rating AC-2 (≤55°C, 100% DF)	95 A
Rotor Duty Rating, Delta Connected (≤40°C) 100/60/40/20% DF	175 / 200 / 236 / 296 A
Max. Rotor Voltage	Starting & Inching: Delta 1160V, Star 1380V; Starting & Plugging: Delta 580V, Star 690V
Transformer Primary Switching 500V AC	40 A
Capacitor Switching (single bank only) 380/400V 3ph	50 kVAR
Coil Consumption Pick-up / Seal	250 VA / 19 VA
Standard	IS/IEC 60947-4-1
Operating Temperature	-20°C to +60°C
Operating Altitude	2000 m
Humidity	50% RH at 60°C; 95% RH at 40°C
Vibration	5 to 100 Hz (0.7g in x,y,z plane)
Operating Position	±30°
