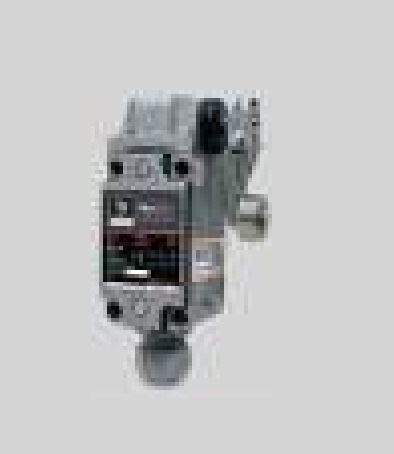

BCH BALRL38 BRAVO Aluminium Heavy Duty Limit Switch - Roller Lever 38 mm (IP67)
BCH BALRL38 BRAVO series aluminium heavy duty limit switch with rotary lever, standard (spring return), fixed length 38 mm, 19 mm dia metal roller operating head. BCH BRAVO series heavy duty limit switches are meant to work in highly contaminated atmosphere and extremely high shock and vibration conditions. Aluminium die cast body, IP 67, snap action 1NO+1NC contact block, interchangeable operating heads, tested and certified as per IS / IEC 60947-5 and CE marked.
Specifications
| Cat Code | BALRL38 |
| Operating Head | Rotary lever, standard (spring return), fixed length 38 mm, 19 mm dia metal roller |
| Enclosure | Aluminium die cast |
| Features | Interchangeable heads ensure complete modularity and flexibility |
| Contact Arrangement | Snap action |
| Contacts | 1 NO + 1 NC, screw terminals |
| Rated Insulation Voltage (Ui) | 600 VAC & 240 VDC |
| Thermal Current (Ith) | 10A |
| Conforming to Standards | IS / IEC 60947-5 |
| Product Certifications | CE marked |
| Ambient Air Temperature | -5 deg C to +40 deg C |
| Degree of Protection | IP 67 |
| Mechanical Durability | 20 x 10^6 operations |
| Frequency of Operations | 2500 operations per hour |
| Cable Entry | 19.0 mm dia (PG11) |
| Earthing Connections | M3.5 earthing screws (2 nos.) |
| Rated Operational Current AC-15 | 110V 6.0A; 220V 3.0A; 440V 1.5A; 550V 1.2A |
| Rated Operational Current DC-13 | 24V 1.0A; 60V 0.5A; 110V 0.2A; 220V 0.1A |
| Rated Impulse Withstand Voltage | 2.5 kV |
| Short Circuit Protection | HRC fuse 10A |
| Terminal Wire Size | 2.5 mm2 solid or stranded |
| Tightening Torque for Terminal Screw | 0.8 Nm (max.) |
| Travel to Trip (A) | 7 - 12 deg |
| Travel to Reset from Trip Point (B) | 6 deg |
| Over Travel (C) | 34 |
| Total Travel (D) | 45 |
| Force to Trip (max.) | 1.0 kg at a radius of 28 mm |
Ordering / Variants
Spares: operating head SPALOHLS, lever SPALRL38.
Typical Applications
Conveyor systems; injection moulding; EOT cranes; packaging machines; material handling; drill machines; textile machinery; hydraulic power presses; tapping machine; heating ovens; food & beverages; special purpose machine
Datasheet, certificates and quotation on request - info@west-velocity.com.
