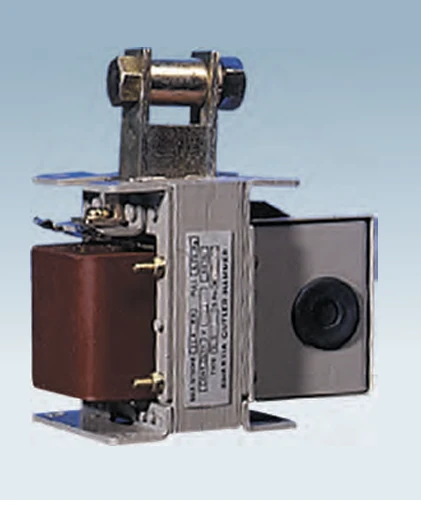

BCH AC Solenoid (Pull Type) — Size B
Made in India
Contact for pricing
Available in Saudi Arabia
Bhartia (BCH) AC pull-type solenoid, Size B — 25 mm maximum stroke, 1.25 kg gross pull at rated voltage. For operating electromechanical brakes and valves, short-stroke motions on machine tools and automatic machinery. Laminated frame and plunger with epoxy-moulded coil; quiet operation; up to 600 operations/hour. Catalogue code SLB<voltage> (e.g. SLBL for 380V).
Specifications
| Solenoid Type | Pull-type AC Solenoid |
| Size | B |
| Product Code | SLB |
| Maximum Stroke Length | 25 mm |
| Pull at Rated Voltage (Gross) | 1.25 kg |
| Pull at 85% Rated Voltage (Gross) | 0.9 kg |
| Weight of Plunger | 0.2 kg |
| Operating Time | 70 m sec |
| Coil Consumption (sealed) | 90 VA |
| Coil Consumption (inrush) | 465 VA |
| Duty | Continuous or Intermittent |
| Operations | Up to 600 operations/hour (within specified pull-in time) |
| Standard Coil Voltages | 110, 220, 380, 415, 440V 50 Hz |
| Catalogue Code | SLB<voltage> (e.g. SLBL = size B with 380V coil) |
| Mounting | Fixing holes for floor mounting |
| Weight | 1.2 kg |
