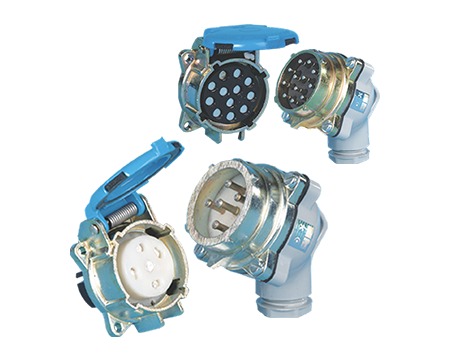

BCH 215B SS Type Plug, Inclined Handle (30A, 1P+N+E, 500V)
Made in India
Contact for pricing
Available in Saudi Arabia
Contact Us for Pricing & Availability
Chat on WhatsApp
Request a Quotation by Email
info@west-velocity.com
Available in
🇸🇦 Saudi Arabia
BCH SS type heavy duty industrial plug with inclined handle 215B for power circuits, 1P+N+E, 30A at 500V AC and DC (off-load decontactor). Uses spring-loaded butt-type silver-tipped contacts instead of pin-and-sleeve contacts, with positive bayonet-type fitting so the plug cannot be pulled out by its cable. Live parts are shrouded, the earth contact is always in the central position, and the socket has a spring-closed gasketted cover suitable for outdoor use and high-vibration conditions.
Specifications
| Cat Code | 215B |
| Product Type | SS Type Plug with Inclined Handle (Power Circuit) |
| Contact Options | 1P+N+E |
| No. of Pins | 3 |
| Rated Voltage | 500V AC and DC |
| Thermal Current (Ith) | 30A (Copper cable); 20A (Alum. Cable) |
| Contact Resistance | Less than 1m ohm |
| Contact Pressure | 1.2 kg. (min.); 1.35 kg. (max.) |
| Mechanical and Electrical Life | 10,000 operations |
| Conduit Entry | 3/4" dia |
| Terminal Capacity | 6mm2 |
| Terminations | Spring loaded |
| Contacts | Butt-type silver contacts, spring loaded |
Datasheet, certificates and quotation on request - info@west-velocity.com.
