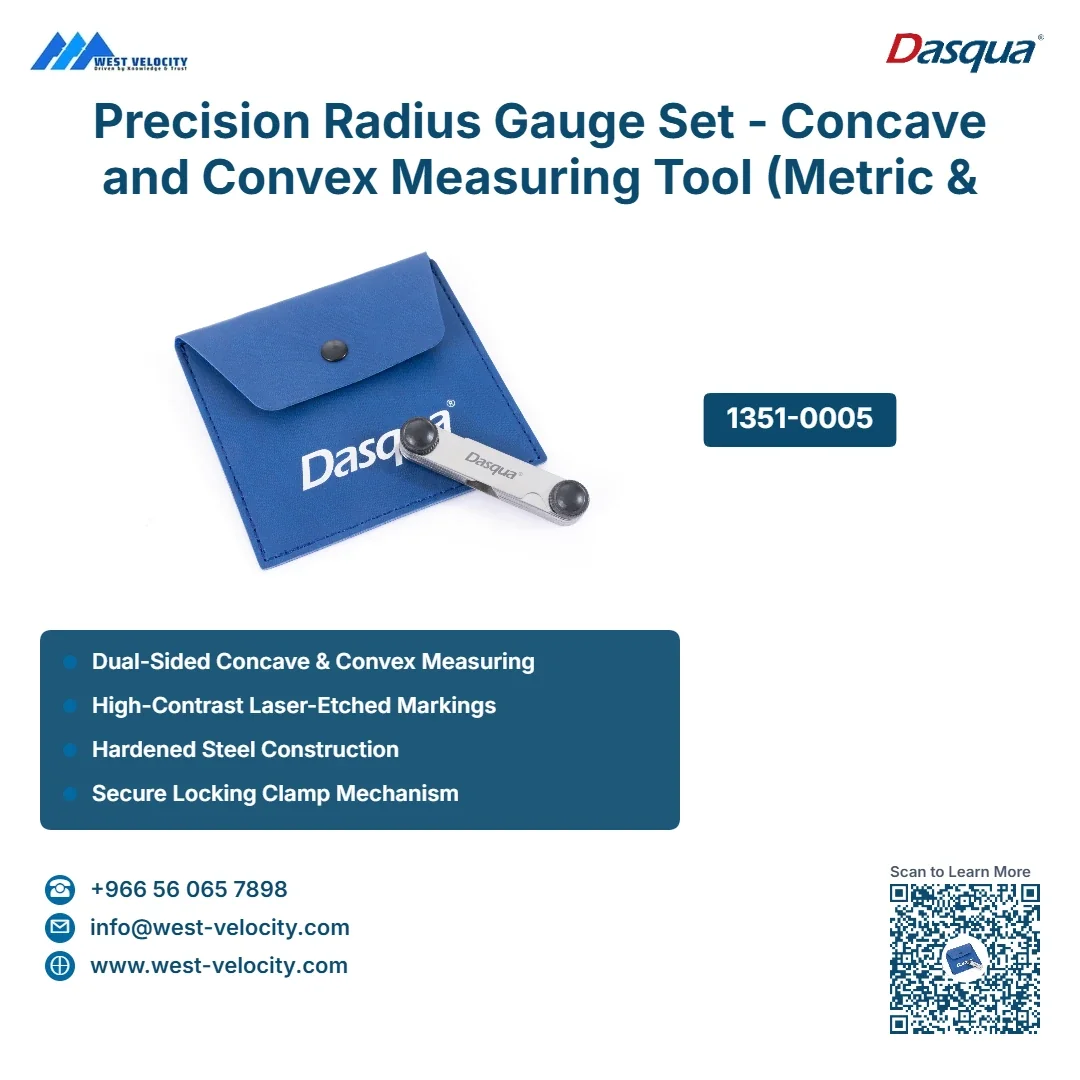

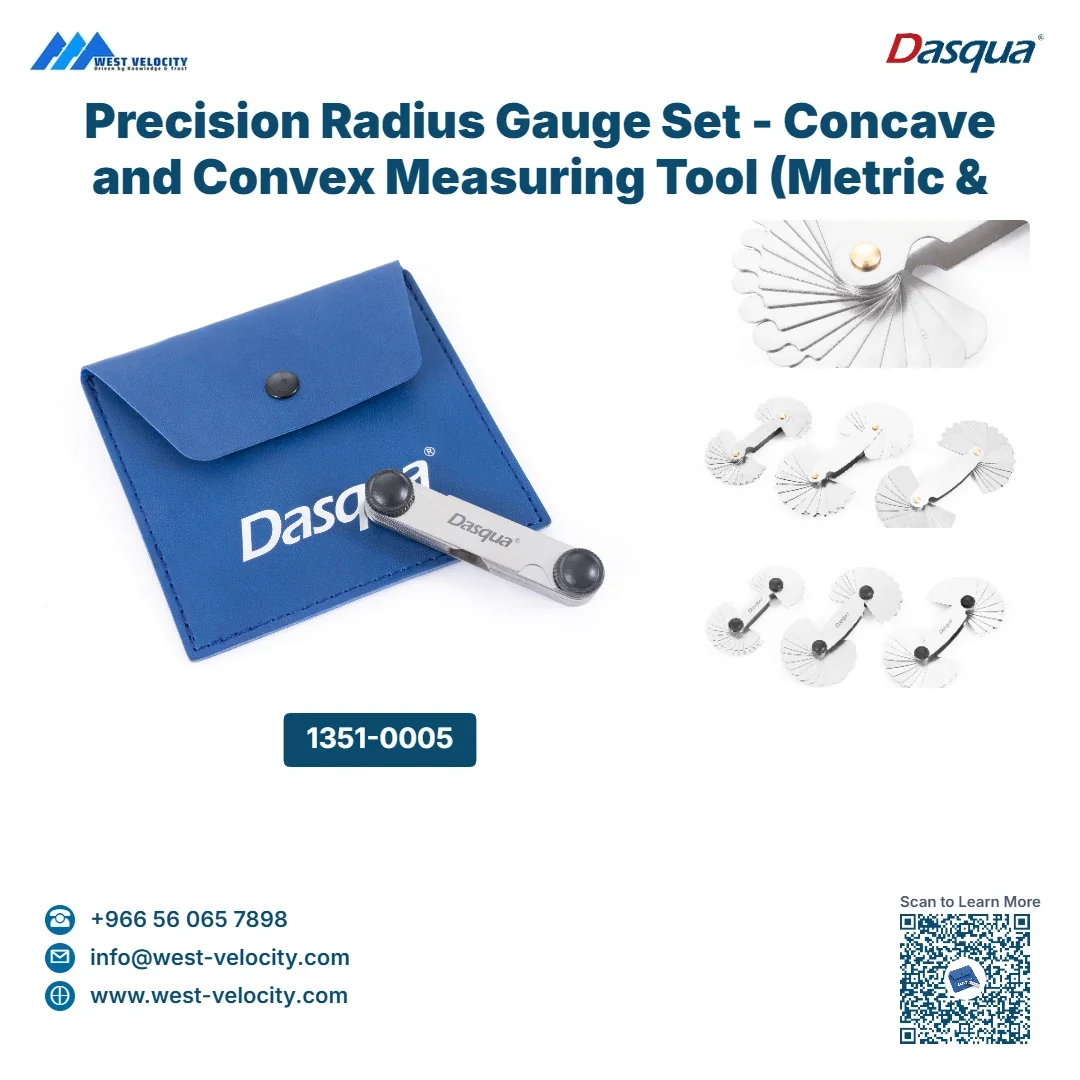

Precision Radius Gauge Set - Concave and Convex Measuring Tool (Metric & Imperial)

Name: Precision Radius Gauge Set - Concave and Convex Measuring Tool (Metric & Imperial)
Brand: Dasqua
SKU: 1351-0005
Availability: InStock

Brand: Dasqua

SKU: 1351-0005

Price on Request

Available in Saudi Arabia Delivery Time: : 2-3 weeks

Wishlist

Facebook Twitter LinkedIn WhatsApp

Chat on WhatsApp

Product Overview

A professional-grade Radius Gauge Set designed for accurately measuring internal and external curvatures. Featuring a dual-ended design with both concave and convex blades, this tool is essential for machinists, toolmakers, and quality control inspectors to verify rounded corners and edge radii.

Product Information

SKU 1351-0005

Category Measuring and Layout Tool

Brand Dasqua

Lead Time Delivery Time:
2-3 weeks

Performance Characteristics

Measuring Range (Metric) 1.00 - 25.00 mm

Key Features

Explore the outstanding features of this product

Dual-Sided Concave & Convex Measuring

Includes both concave and convex precision-cut blades for versatile internal and external radius measurement, essential for machinists and quality inspectors.

Hardened Steel Construction

Crafted from high-strength hardened steel with a corrosion-resistant coating for exceptional durability in industrial shop floor environments.

High-Contrast Laser-Etched Markings

Each radius blade is laser-etched or stamped with its specific size in mm or inches, enabling quick and accurate identification during use.

Secure Locking Clamp Mechanism

Features an integrated knurled locking clamp that securely holds the desired radius blade in position, preventing movement during critical measurements.

Material Composition

Detailed breakdown of materials used in this product

High-Strength Hardened Steel

Not specified

Used for the measuring blades to provide durability and corrosion resistance for long-term use in industrial environments.

Composition Overview

High-Strength Hardened Steel

Not specified

Product Applications

Discover the various ways this product can be utilized

Automotive Engineering

Measuring engine component and bodywork radii.

Machining & Fabrication

Checking corner radii on milled or turned parts.

Quality Inspection

Pass/Fail testing for manufactured components.

Tool & Die Making

Verifying mold and die curvatures.

Woodworking & Pattern Making

Ensuring consistency in curved profiles.

Variations

Code	Range	Step	Leaves Convex(Pcs)	Leaves Concave(Pcs)
1351-0005	1.0-7.0	1.0-3.0:0.25;3.0-7.0:0.5	17	17
1351-0010	7.5-15	7.5-15:0.5	16	16
1351-0015	15.5-25	15.5-20:0.5;20-25:1	15	15
1352-1005	1/32"-1/4"	1/64"	15	15
1352-1010	17/64"-1/2"	1/64"	16	16
1352-1015	17/32"-1"	1/32"	16	16
