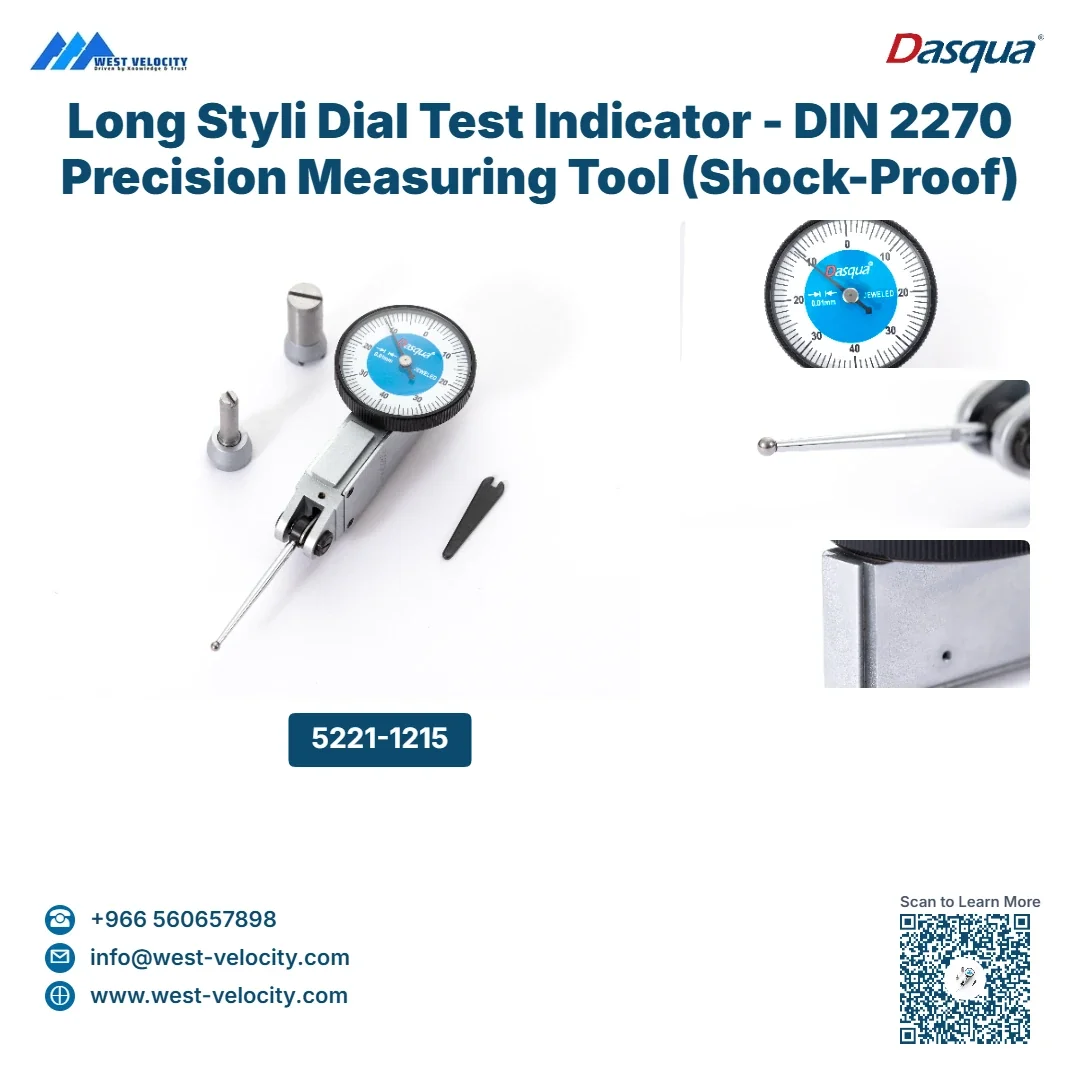

Long Styli Dial Test Indicator - DIN 2270 Precision Measuring Tool (Shock-Proof)

Name: Long Styli Dial Test Indicator - DIN 2270 Precision Measuring Tool (Shock-Proof)
Brand: Dasqua
SKU: 5221-1215
Availability: InStock

Brand: Dasqua

SKU: 5221-1215

Price on Request

Available in Saudi Arabia Delivery Time: : 2-3 weeks

Wishlist

Facebook Twitter LinkedIn WhatsApp

Chat on WhatsApp

Product Overview

Professional-grade Dial Test Indicator with Long Styli, engineered for high-accuracy measurements in hard-to-reach areas. Compliant with DIN 2270 standards, this shock-proof indicator features a satin chrome-finish case and a precision gear-driven design for smooth, reliable movement in machine shops and quality control labs.

Product Information

SKU 5221-1215

Category Measuring and Layout Tool

Brand Dasqua

Lead Time Delivery Time:
2-3 weeks

Performance Characteristics

Measurement Range 0.80 mm

Resolution Accuracy 0.01 mm

Stylus Length 30.00 - 46.40 mm

Key Features

Explore the outstanding features of this product

High Readability White-Edged Dial

The white-edged dial face allows for quick and error-free readings, even in low-light industrial environments.

Long Styli for Extended Reach

Equipped with long styli up to 46.4mm, enabling precise measurements in deep recesses and hard-to-reach areas.

Robust Satin Chrome-Finish Case

The satin chrome-finish steel case provides superior corrosion and wear resistance for long-lasting durability.

Shock-Proof Precision Mechanism

Features an advanced shock-proof gearing system that protects the internal movement from sudden impacts, ensuring reliable operation.

Material Composition

Detailed breakdown of materials used in this product

Hardened Precision Gearing

Not specified

Used for the internal gears, ensuring smooth and reliable movement of the measuring mechanism.

Hardened and Ground Steel/Carbide

Not specified

Used for the contact point, providing durability and accuracy for precise measurements.

Rigid Heavy-Duty Metal Alloy

Not specified

Used for the frame, ensuring excellent rigidity and stability during measurement operations.

Satin Chrome-Finished Steel

Not specified

Used for the case, providing superior corrosion and wear resistance for the exterior body.

Composition Overview

Hardened Precision Gearing

Not specified

Hardened and Ground Steel/Carbide

Not specified

Rigid Heavy-Duty Metal Alloy

Not specified

Satin Chrome-Finished Steel

Not specified

Product Applications

Discover the various ways this product can be utilized

Deep Access

Reaching inside narrow bores or behind shoulders where standard indicators fail.

Precision Alignment

Aligning workpieces on lathes or milling machines.

Quality Inspection

Comparative measurements in CNC machining and tool making.

Run-out Testing

Checking shaft straightness and concentricity.

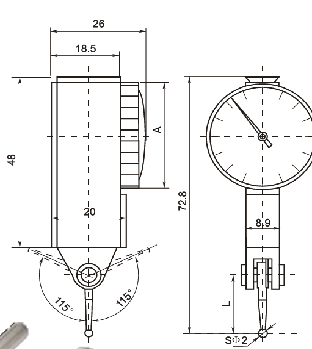

Variations

Code	Range	Graduation	Casing Diameter(A)	Length of Stylus(L)
5221-1215	0.8	0.013	κ30	30
5221-1220	0.8	0.013	κ37.5	30
5221-1205	0.8	0.013	κ30	46.4
5221-1210	0.8	0.013	κ37.5	46.4
