Measuring and Layout Tool High-Precision Shock-Proof Di…

High-Precision Shock-Proof Dial Caliper - ISO 13385-1 & DIN 862 Standard - Dasqua - SKU: 1331-2115-A

NEW BESTSELLER FEATURED

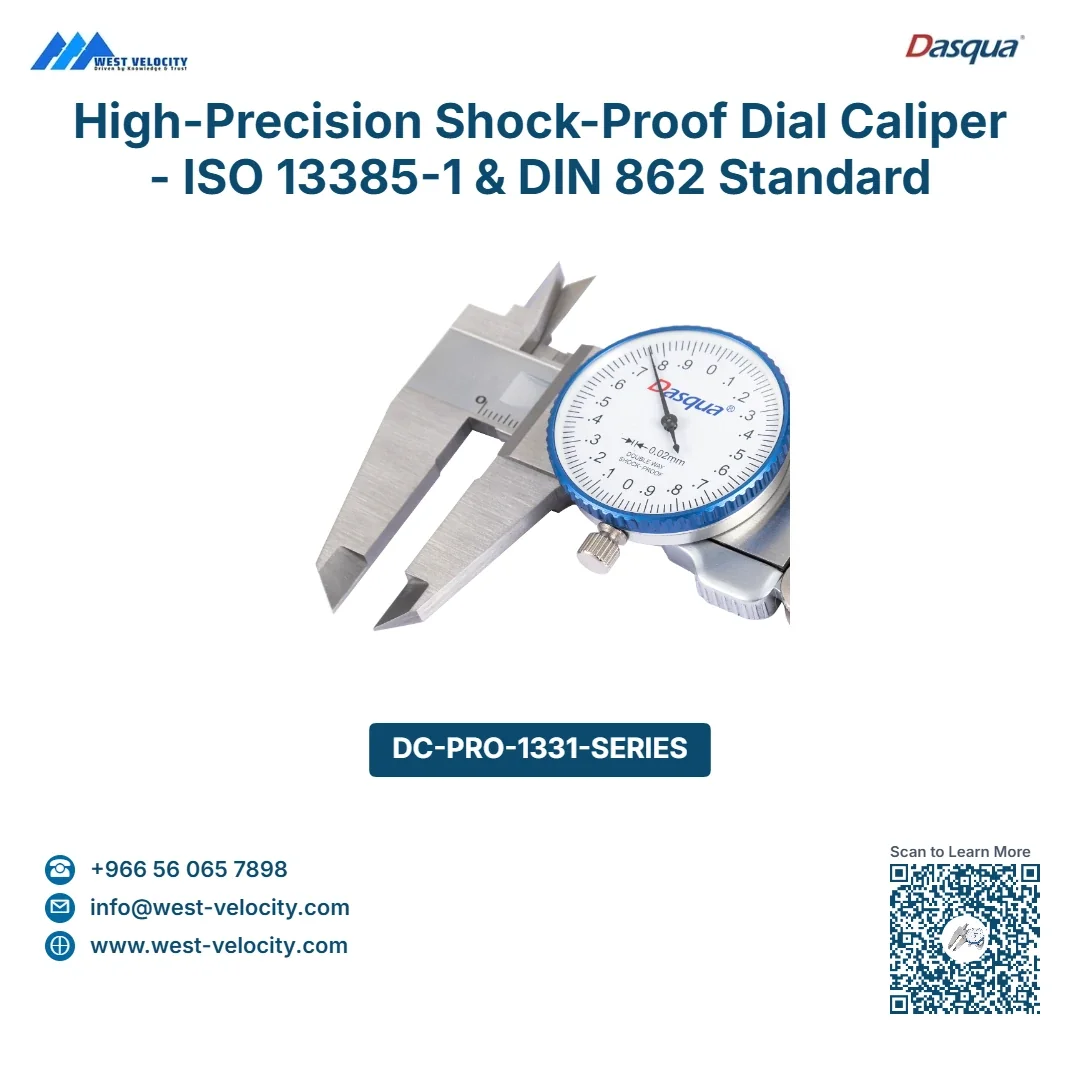

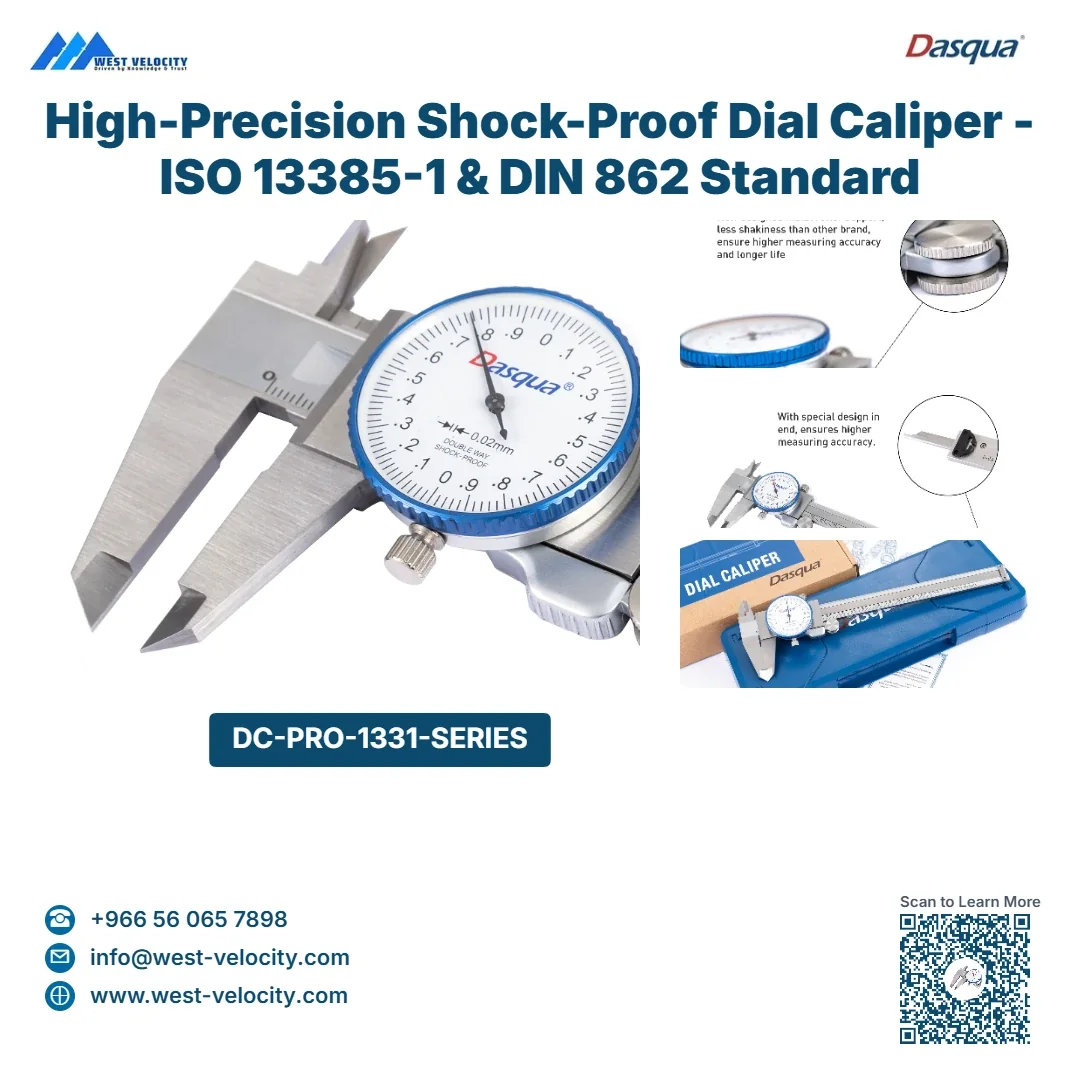

High-Precision Shock-Proof Dial Caliper - ISO 13385-1 & DIN 862 Standard

Name: High-Precision Shock-Proof Dial Caliper - ISO 13385-1 & DIN 862 Standard
Brand: Dasqua
SKU: 1331-2115-A
Availability: InStock

Brand: Dasqua

SKU: 1331-2115-A

Price on Request

Available in Saudi Arabia Delivery Time: : 2-3 weeks

Wishlist

Facebook Twitter LinkedIn WhatsApp

Chat on WhatsApp

Product Overview

An ultra-precise Dial Caliper designed for maximum reliability, offering 50% higher accuracy than the DIN 862 standard. Featuring tough shock-proof gearing and a solid stainless steel build, it provides four-way measurement capabilities for outside, inside, step, and depth dimensions.

Product Information

SKU 1331-2115-A

Category Measuring and Layout Tool

Brand Dasqua

Lead Time Delivery Time:
2-3 weeks

Performance Characteristics

Measuring Force 2.50 - 3.50 N

Measuring Range 150.00 mm

Parallelism 0.01 mm

Resolution Accuracy 0.01 mm

Key Features

Explore the outstanding features of this product

4-Way Measurement Capability

Enables measurement of Outside Diameter (OD), Inside Diameter (ID), Step, and Depth dimensions with a single tool.

50% Higher Accuracy than DIN 862 Standard

Engineered to provide 50% better precision than standard DIN 862 tools, delivering repeatable, high-accuracy measurement results with parallelism ≤ 0.007 mm.

Laser-Etched High-Contrast Scale

Features laser-etched graduations on a glare-reducing satin chrome finish, ensuring clear, distinct, and error-free readings.

Shock-Proof Gearing Protection

Protects the internal rack-and-pinion mechanism from impacts and vibrations, ensuring stable and reliable measurements in busy workshop environments.

Vacuum Quenched Stainless Steel Build

Constructed with vacuum quenched stainless steel for enhanced surface hardness, providing superior scratch and wear resistance for a longer service life.

Material Composition

Detailed breakdown of materials used in this product

Stainless Steel

Not specified

Used for the solid build of the caliper, providing durability and wear resistance for reliable measurements over a long service life.

Composition Overview

Stainless Steel

Not specified

Product Applications

Discover the various ways this product can be utilized

Automotive Engineering

Measuring engine components and brake rotors.

Precision Machining

Checking tolerances on CNC machined parts.

Quality Control

Inline inspection for manufacturing plants.

Tool & Die Making

High-accuracy mold and jig construction.

Variations

Code	Range	Graduation	L	A	B	C	D	Accuracy
1331-2115-A	0-150	0.02	236	77	40	16.5	16	±0.015
1331-2120-A	0-200	0.02	285	88	48	19.5	16	±0.02
1331-2130-A	0-300	0.02	410	110	62	22.5	20	±0.025
1350-5005-A	0-150	0.01	236	77	40	16.5	16	±0.01
1350-5010-A	0-200	0.01	285	88	48	19.5	16	±0.015
1350-5015-A	0-300	0.01	410	110	62	22.5	20	±0.02
1332-4110-A	0-6"	0.001"	236	77	40	16.5	16	±0.00065"
1332-4115-A	0-8"	0.001"	285	88	48	19.5	16	±0.00085"
1332-4120-A	0-12"	0.001"	410	110	62	22.5	20	±0.001"
