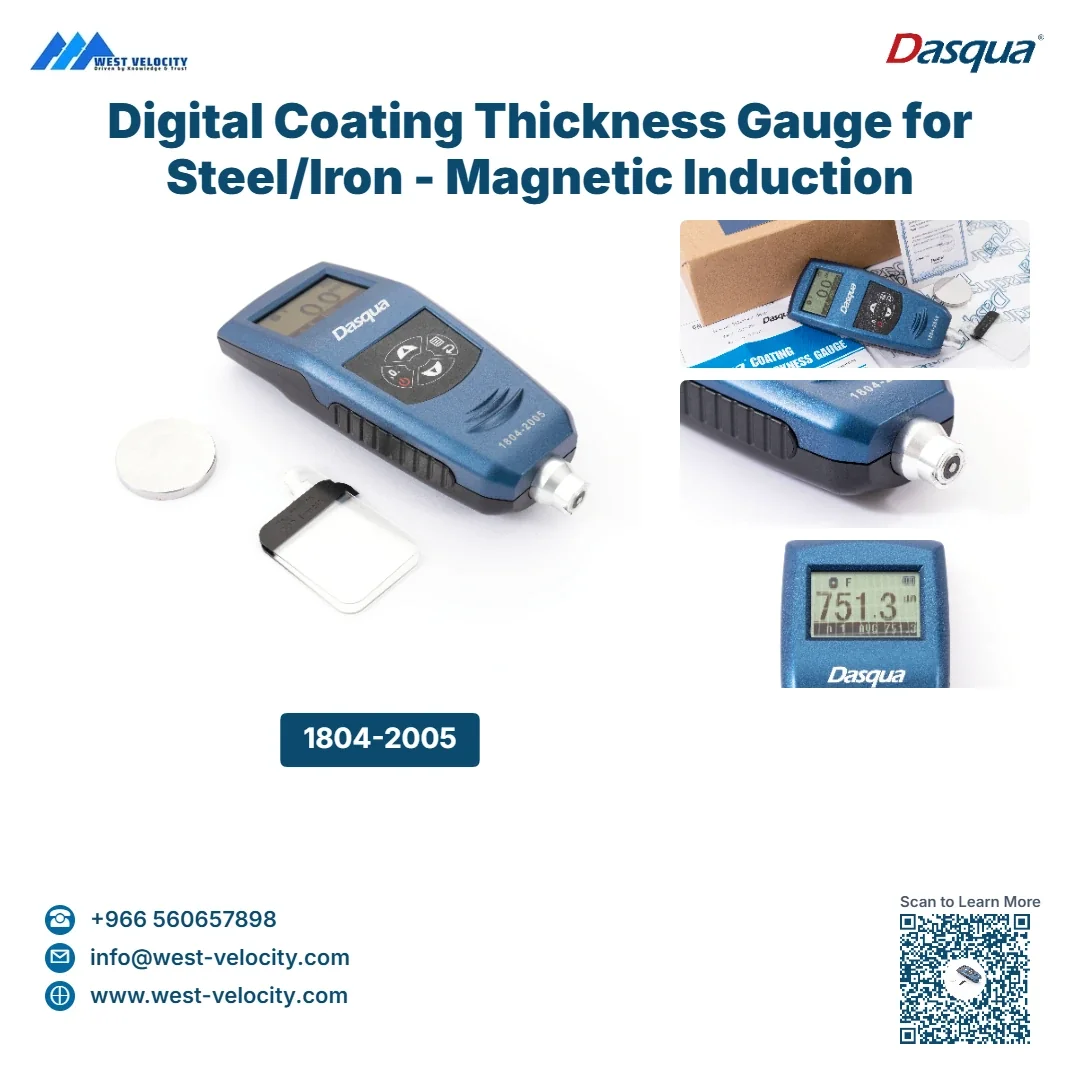

Digital Coating Thickness Gauge for Steel/Iron - Magnetic Induction (0-1250μm) - Dasqua - SKU: 1804-2005

NEW BESTSELLER FEATURED

Digital Coating Thickness Gauge for Steel/Iron - Magnetic Induction (0-1250μm)

Name: Digital Coating Thickness Gauge for Steel/Iron - Magnetic Induction (0-1250μm)
Brand: Dasqua
SKU: 1804-2005
Availability: OutOfStock

Brand: Dasqua

SKU: 1804-2005

Price on Request

Delivery Time: : 2-3 weeks

Wishlist

Facebook Twitter LinkedIn WhatsApp

Chat on WhatsApp

Product Overview

A compact, high-precision digital coating thickness gauge using magnetic induction technology. Ideal for measuring paint, powder coating, and plating thickness on ferrous metal substrates with an accuracy of ±2.0 μm.

Product Information

SKU 1804-2005

Category Measuring and Layout Tool

Brand Dasqua

Lead Time Delivery Time:
2-3 weeks

Performance Characteristics

Measurement Accuracy 2.00 μm

Measuring Range 1250.00 μm

Resolution Accuracy 0.10 μm

Key Features

Explore the outstanding features of this product

0-1250μm Magnetic Induction Measurement Range

Enables non-destructive measurement of non-magnetic coatings like paint, enamel, chrome on ferrous metal substrates up to 1250μm (50 mil) with ±2.0μm accuracy.

500 Reading Internal Memory with Statistics

Built-in memory stores up to 500 readings for review. Calculates key statistical values for large measurement series, enabling quality control analysis.

Backlit Graphic LCD Display

Clear, high-visibility backlit LCD screen ensures easy reading in low-light industrial environments.

Compact Integrated Probe Design

Ergonomic one-piece construction with integrated probe enables comfortable one-handed operation and measurements.

Dual-Point Calibration Capability

Supports zero-point and one-point calibration for high precision measurements on varied substrate shapes and surfaces.

Material Composition

Detailed breakdown of materials used in this product

ABS Polymer

Not specified

Housing material for impact resistance.

Hardened material

Not specified

Probe tip material for wear resistance and long-term accuracy.

Tempered Graphic LCD

Not specified

Screen material for clear visibility.

Composition Overview

ABS Polymer

Not specified

Hardened material

Not specified

Tempered Graphic LCD

Not specified

Product Applications

Discover the various ways this product can be utilized

Anti-Corrosion

Monitoring protective layer thickness on pipelines and structural steel.

Automotive

Checking paint thickness and detecting hidden body repairs.

Manufacturing

Verifying powder coating and plating thickness on steel parts.

Quality Inspection

Laboratory and field testing for industrial finishing.

Variations

Code	Test method	Measuring Range	Resolution	Accuracy	Data Memory	Display	Power Supply	Operating Temperature	Dimension	Weight	Certificate	Accessories
1804-2005	Magnetic induction	0- 1250μm (0 -50 mil)	0 - 999μm: 0.1μm, ≥1000μm: 1μm	0- 100μm: ± 2.0 μm, 101-1250μm≤2.5%	500 readings	Graphic LCD with backlight	1.5V*3 (AAA alkaline batteries)	0-50°C	150X50.5X29mm	110g	CE	Thickness gauge, Substrate, Certification foils set , User's manual,Manufacturer's certificate.
