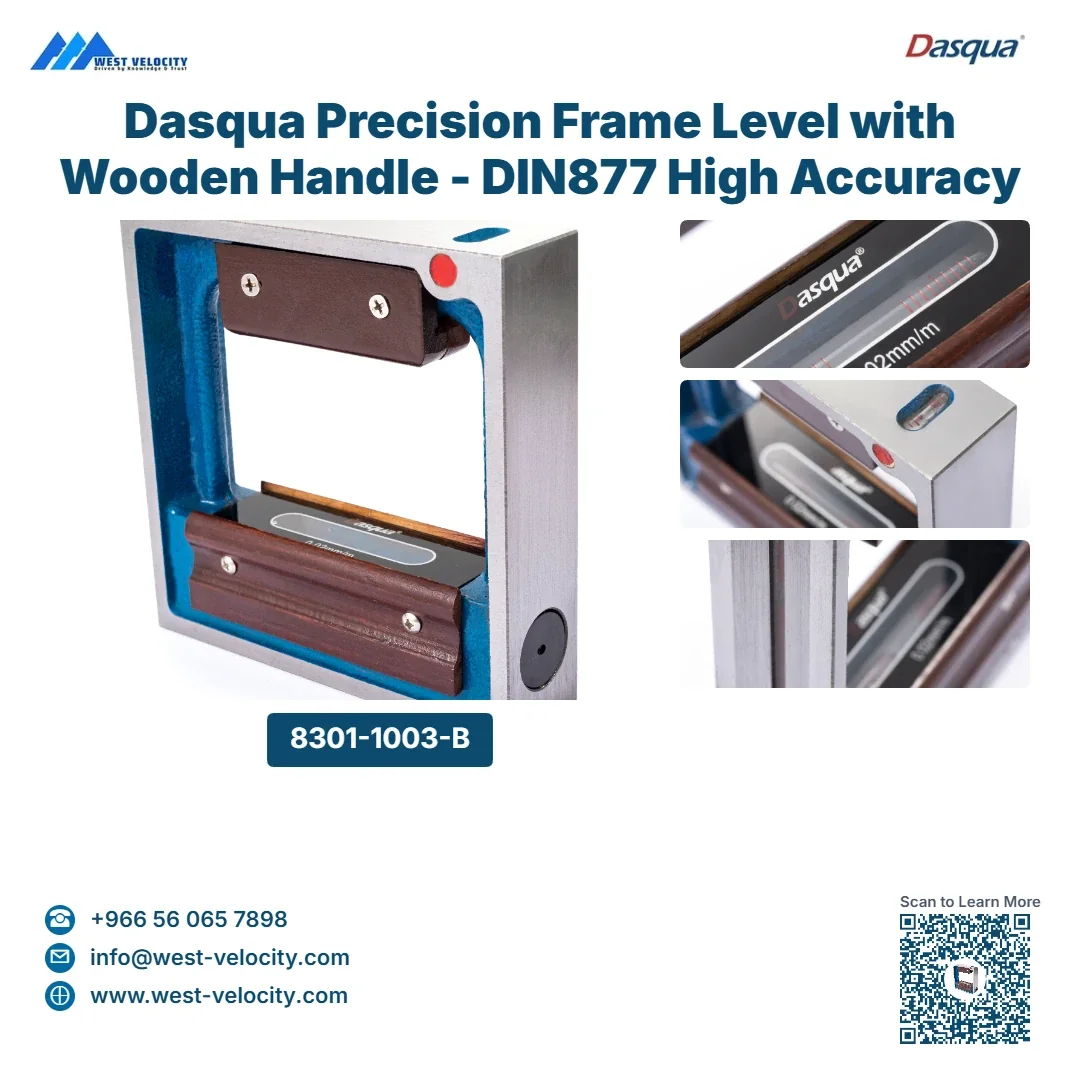

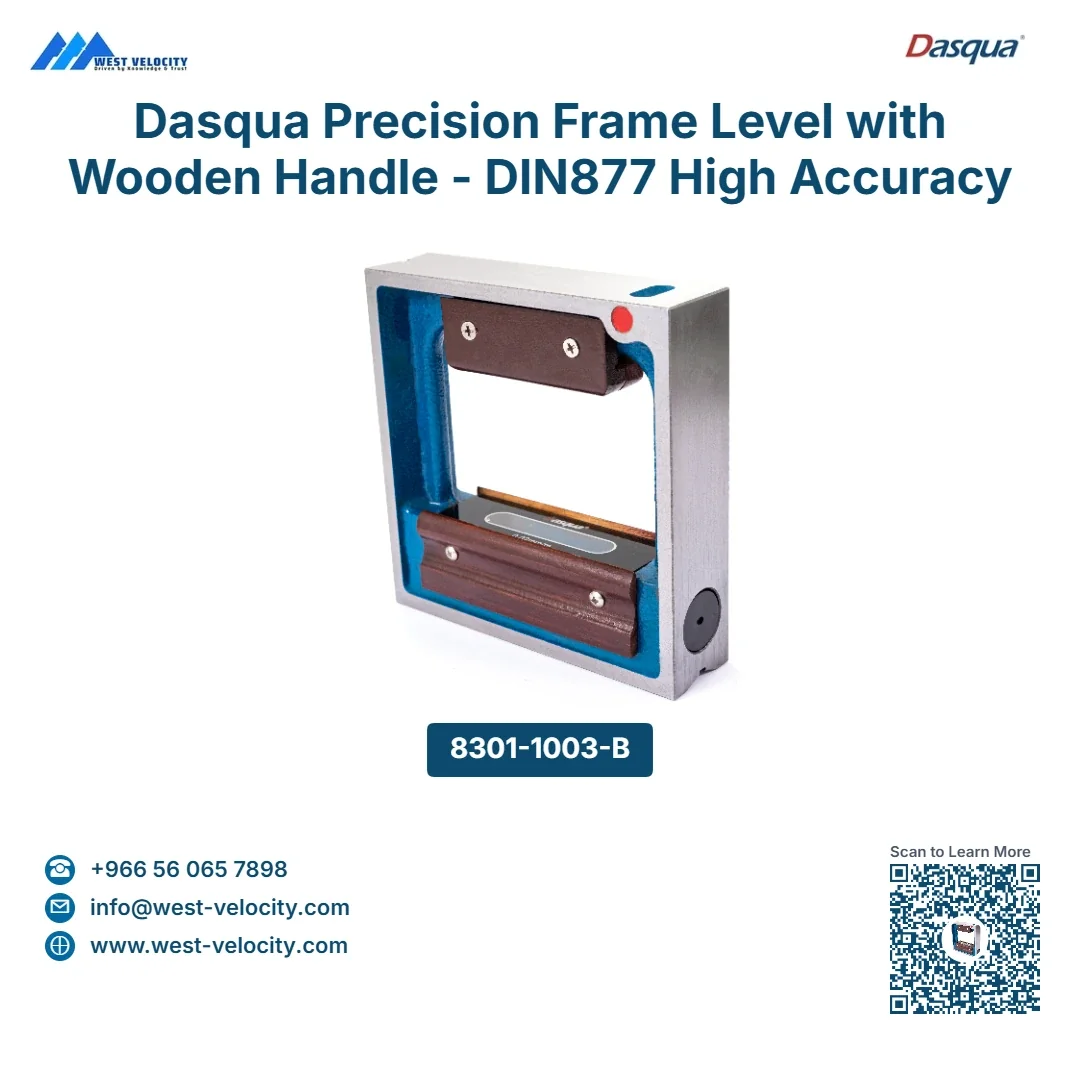

Dasqua Precision Frame Level with Wooden Handle - DIN877 High Accuracy Machinist Level

Name: Dasqua Precision Frame Level with Wooden Handle - DIN877 High Accuracy Machinist Level
Brand: Dasqua
SKU: 8301-1003-B
Availability: InStock

Brand: Dasqua

SKU: 8301-1003-B

Price on Request

Available in Saudi Arabia Delivery Time: : 2-3 weeks

Wishlist

Facebook Twitter LinkedIn WhatsApp

Chat on WhatsApp

Product Overview

A professional-grade Precision Frame Level designed for the machinery industry. Featuring a robust steel body and a high-sensitivity glass bubble, this tool ensures the absolute flatness and straightness of machine guide rails and equipment setups. Compliant with DIN877 standards, it is the gold standard for vertical and horizontal alignment.

Product Information

SKU 8301-1003-B

Category Measuring and Layout Tool

Brand Dasqua

Lead Time Delivery Time:
2-3 weeks

Performance Characteristics

Accuracy 0.02 mm/m

Key Features

Explore the outstanding features of this product

DIN877 High Accuracy Machinist Level

Ensures absolute flatness and straightness with an accuracy of 0.02mm/m, strictly complying with DIN877 standards for vertical and horizontal alignment in machinery setups.

Ergonomic Wooden Handle

Offers a premium feel, better grip, and thermal insulation compared to plastic with its natural hardwood handle design.

Hardened Lapped Steel Body

Provides a smooth, blister-free, and durable professional-grade finish with its hardened, lapped, and polished steel construction.

High Sensitivity Glass Bubble Vial

Delivers parallax-free reading with a high-transparency, adjustable glass bubble vial for maintaining long-term measurement accuracy.

V-Grooved Precision Ground Base

Enables secure mounting on both flat surfaces and cylindrical parts like shafts or pipes with its precision-ground V-groove base.

Material Composition

Detailed breakdown of materials used in this product

Corrosion-resistant industrial coating

Not specified

Applied as a finish to the body, protecting the level from corrosion and wear.

Hardened, Lapped, and Polished Steel

Not specified

Used for the body of the level, providing a durable and smooth surface for accurate measurements.

High-Transparency Sensitive Glass

Not specified

Used for the vial or bubble, allowing for precise and parallax-free reading of inclination.

Natural Hardwood

Not specified

Used for the handle, offering a superior grip and thermal insulation compared to plastic.

Composition Overview

Corrosion-resistant industrial coating

Not specified

Hardened, Lapped, and Polished Steel

Not specified

High-Transparency Sensitive Glass

Not specified

Natural Hardwood

Not specified

Product Applications

Discover the various ways this product can be utilized

Civil Engineering

High-accuracy vertical and horizontal positioning for heavy steel structures.

Industrial Maintenance

Checking the straightness of machine guide rails.

Instrument Manufacturing

Precise alignment of optical and laboratory equipment.

Machine Tool Setup

Leveling lathes, milling machines, and CNC centers.

Variations

Code	Range	Accuracy
8301-1003-B	150 x 150	0.02mm/m
8301-1006-B	200 x 200	0.02mm/m
8301-1009-B	250 x 250	0.02mm/m
8301-1013-B	300 x 300	0.02mm/m
