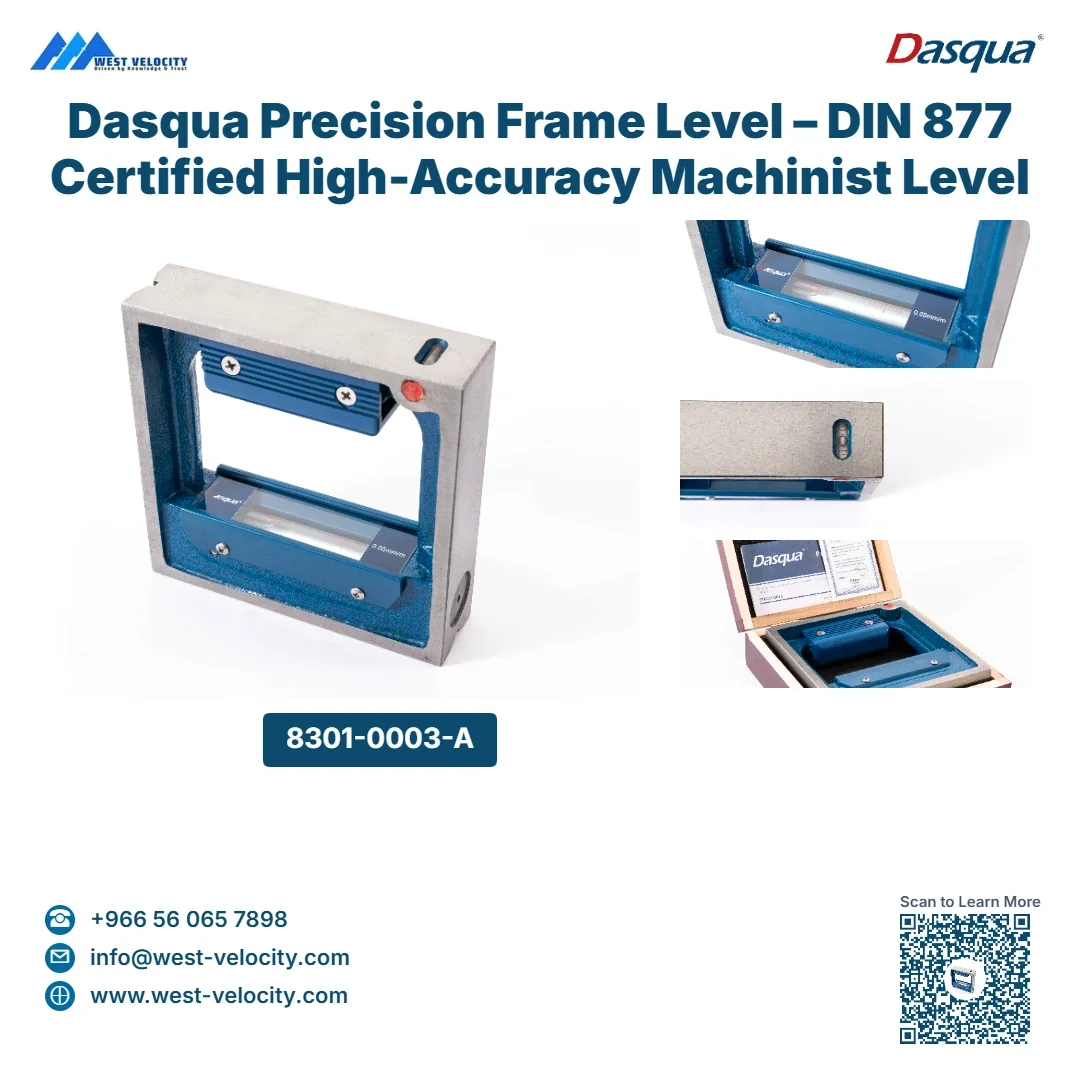

Dasqua Precision Frame Level – DIN 877 Certified High-Accuracy Machinist Level

Name: Dasqua Precision Frame Level – DIN 877 Certified High-Accuracy Machinist Level
Brand: Dasqua
SKU: 8301-0003-A
Availability: InStock

Brand: Dasqua

SKU: 8301-0003-A

Price on Request

Available in Saudi Arabia Delivery Time: : 2-3 weeks

Wishlist

Facebook Twitter LinkedIn WhatsApp

Chat on WhatsApp

Product Overview

The Dasqua Precision Frame Level is a professional-grade metrology tool designed for checking the horizontal and vertical alignment of machine guide rails. Built to DIN 877 standards, it features a robust cast iron body and precision-ground surfaces for maximum reliability in industrial calibration.

Product Information

SKU 8301-0003-A

Category Measuring and Layout Tool

Brand Dasqua

Lead Time Delivery Time:
2-3 weeks

Performance Characteristics

Sensitivity Range 0.02 mm/m

Key Features

Explore the outstanding features of this product

DIN 877 Certified High-Accuracy Level

Strictly manufactured to international DIN 877 standards for precision leveling, ensuring reliable measurements in industrial calibration applications.

Dual-Axis Horizontal/Vertical Measurement

Measures both straightness and flatness simultaneously on horizontal and vertical planes, enabling efficient inspection of machine alignments.

High Sensitivity Up to 0.02mm/m

Available in ultra-precise accuracy grades up to 0.02mm/m for critical tolerance applications requiring micron-level measurements.

Robust Cast Iron Construction

Heavy-duty cast iron frame minimizes thermal expansion and resists wear, delivering long-lasting durability in harsh workshop environments.

V-Groove Base for Round Surfaces

Precision-ground bottom and side surfaces with V-slots allow for accurate leveling on cylindrical surfaces like shafts and round bars.

Material Composition

Detailed breakdown of materials used in this product

Cast Iron

Not specified

Body material for vibration dampening, stability, and minimizing thermal expansion effects.

Glass

Not specified

High-visibility impact-resistant vial material with graduated scaling for clear level readings.

Steel

Not specified

Precision-ground and hardened measuring surfaces for accuracy and wear resistance.

Composition Overview

Cast Iron

Not specified

Glass

Not specified

Steel

Not specified

Product Applications

Discover the various ways this product can be utilized

CNC Machine Setup

Leveling beds and guide rails for lathes and milling machines.

Metrology Labs

Calibration of surface plates and heavy-duty industrial equipment.

Shaft Alignment

Checking the horizontal orientation of drive shafts and rotors.

Structural Engineering

High-precision leveling of steel frames and foundations.

Variations

Code	Range	Accuracy
8301-0003-A	150 x 150	0.05mm/m
8301-0006-A	200 x 200	0.05mm/m
8301-0009-A	250 x 250	0.05mm/m
8301-0013-A	300 x 300	0.05mm/m
8301-1003-A	150 x 150	0.02mm/m
8301-1006-A	200 x 200	0.02mm/m
8301-1009-A	250 x 250	0.02mm/m
8301-1013-A	300 x 300	0.02mm/m
8302-0003-A	6" x 6"	0.0005"10"
8302-0006-A	8" x 8"	0.0005"10"
8302-0009-A	10" x 10"	0.0005"10"
8302-0013-A	12" x 12"	0.0005"10"
