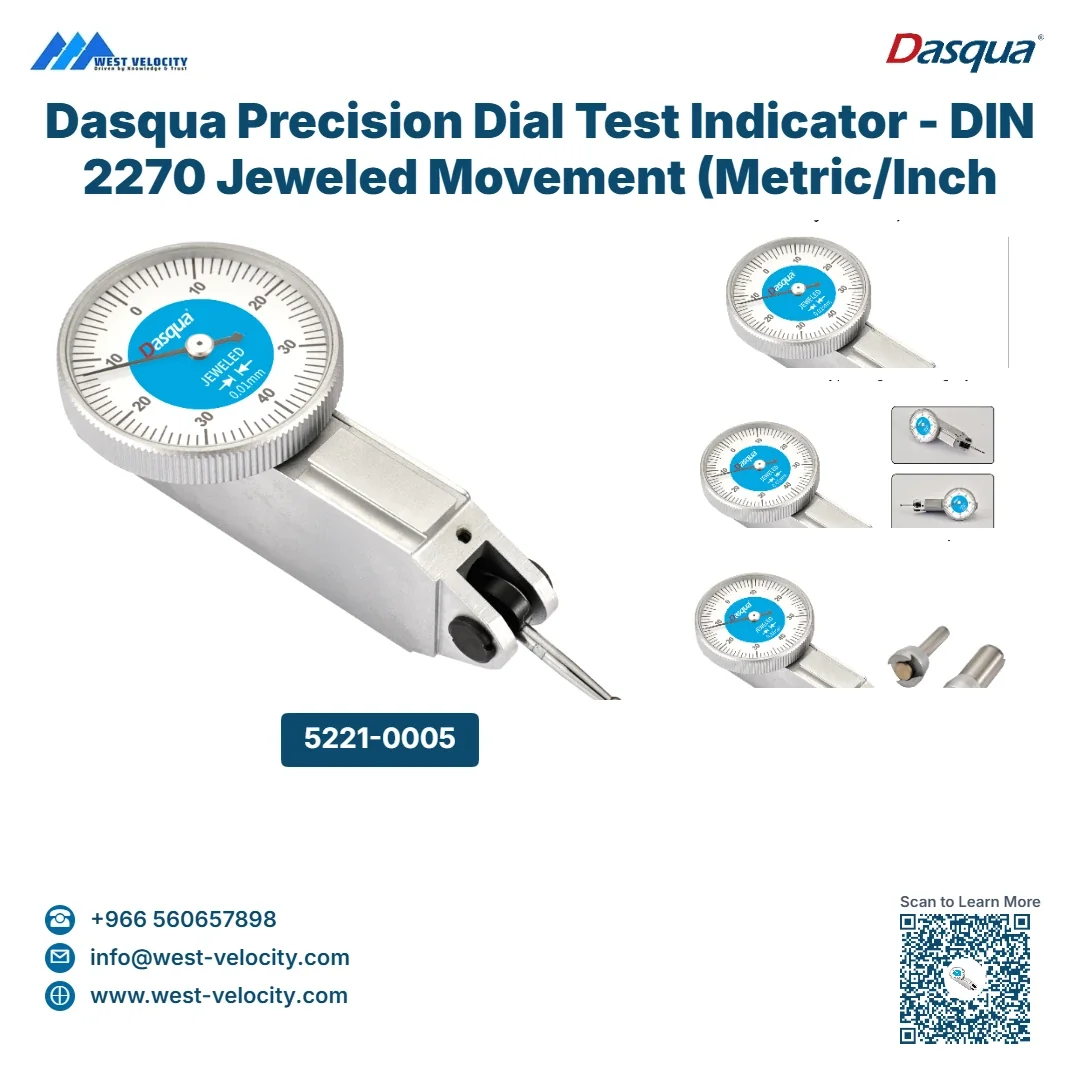

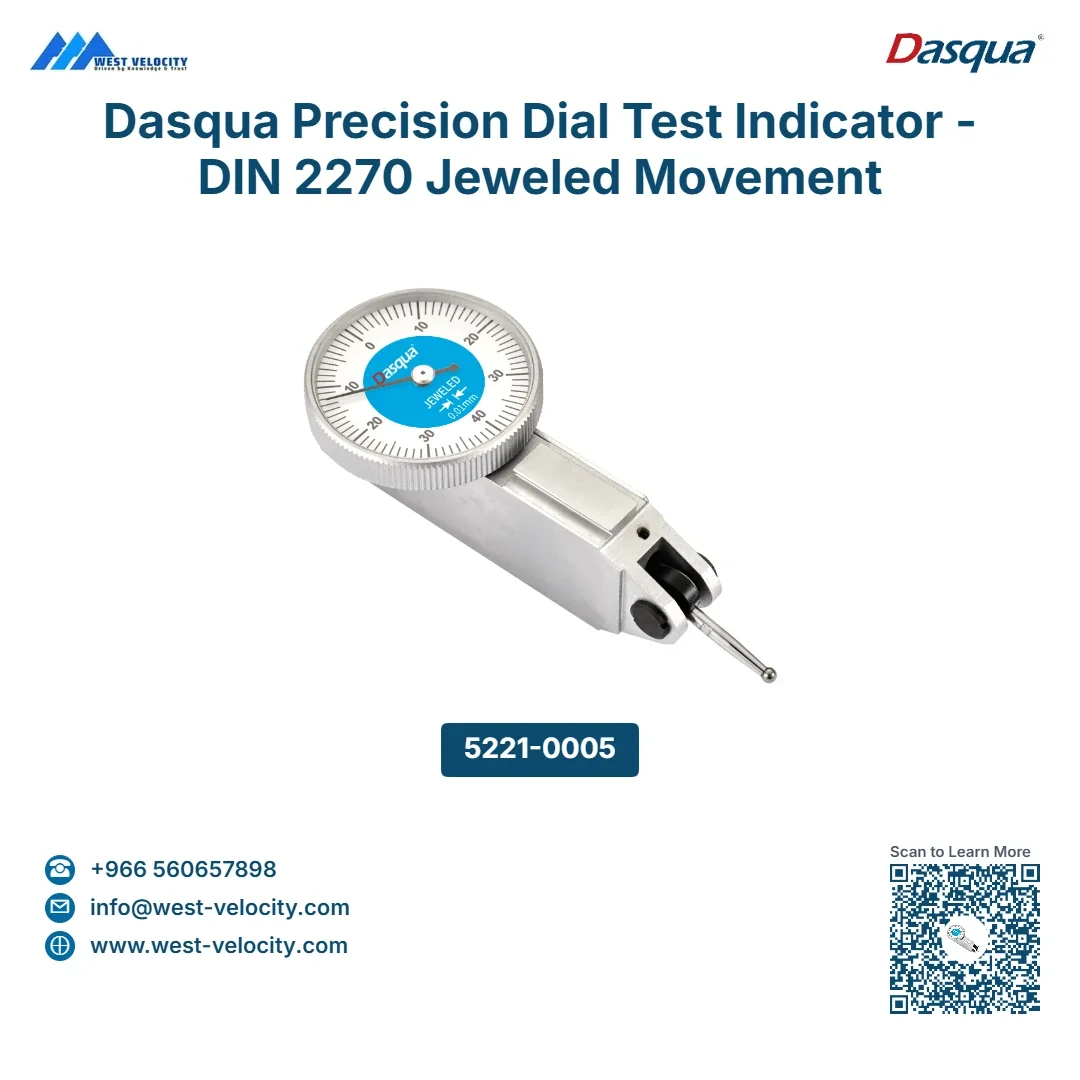

Dasqua Precision Dial Test Indicator - DIN 2270 Jeweled Movement (Metric/Inch Options)

Name: Dasqua Precision Dial Test Indicator - DIN 2270 Jeweled Movement (Metric/Inch Options)
Brand: Dasqua
SKU: 5221-0005
Availability: InStock

Brand: Dasqua

SKU: 5221-0005

Price on Request

Available in Saudi Arabia Delivery Time: : 2-3 weeks

Wishlist

Facebook Twitter LinkedIn WhatsApp

Chat on WhatsApp

Product Overview

High-precision Dasqua Dial Test Indicator compliant with DIN 2270 standards. Designed for professional machinists, this tool features a jeweled movement for ultra-smooth operation and superior accuracy in measuring surface flatness, alignment, and runout. Available in both Metric and Inch sizes with a choice of steel or ruby contact points.

Product Information

SKU 5221-0005

Category Measuring and Layout Tool

Brand Dasqua

Lead Time Delivery Time:
2-3 weeks

Key Features

Explore the outstanding features of this product

DIN 2270 Compliant Jeweled Movement

Utilizes a precision gear-driven mechanism with jeweled bearings to minimize friction and increase sensitivity, ensuring ultra-smooth operation and superior accuracy in measuring surface flatness, alignment, and runout.

Durable Satin Chrome-Finish Steel Body

Features a rigid hard-frame body with a satin chrome finish that resists deformation under pressure and offers excellent corrosion resistance in workshop environments.

High-Contrast White Dial Face

Clear, white-edge dial face optimized for quick legibility, reducing eye strain during repetitive QC checks.

Versatile Dovetail Mounting

Includes dovetail mounts for attaching to various magnetic base accessories, enabling flexible use in different measurement setups.

Material Composition

Detailed breakdown of materials used in this product

Hardened Ground Steel

Not specified

Used for the contact point/stylus to provide wear resistance and maintain measurement accuracy over extended use.

Hardened steel

Not specified

Used for the body/casing to provide a rigid, durable structure that resists deformation and corrosion in workshop environments.

High-grade brass

Not specified

Used in the gear mechanism and jeweled pivot points to minimize friction and enable smooth operation.

Satin Chrome finish

Not specified

Applied to the steel body/casing to enhance corrosion resistance and durability in industrial settings.

Scratch-resistant

Not specified

Material used for the dial face to prevent scratches and maintain legibility over long-term use.

Synthetic Ruby

Not specified

An optional ultra-hard material used for the contact point/stylus to maximize wear resistance and longevity.

Composition Overview

Hardened Ground Steel

Not specified

Hardened steel

Not specified

High-grade brass

Not specified

Satin Chrome finish

Not specified

Scratch-resistant

Not specified

Synthetic Ruby

Not specified

Product Applications

Discover the various ways this product can be utilized

Automotive

Checking crankshaft runout and brake disc warping.

Machining

Checking workpiece alignment on lathes and milling machines.

Quality Control

Measuring surface flatness and parallelism.

Toolroom

Setting up precision jigs and fixtures.

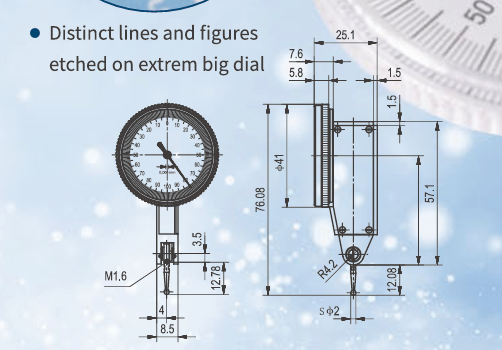

Variations

Code	Range	Graduation	Casing Diameter(A)	Length of Stylus(L)	Styli
5221-0005	0.8	0.01	ø30	16.5	Steel
5221-0000	0.8	0.01	ø37.5	16.5	Steel
5221-0005-A	0.8	0.01	ø30	16.5	Ruby
5221-0000-A	0.8	0.01	ø37.5	16.5	Ruby

Variations

Code	Range	Graduation	Casing Diameter(A)	Length of Stylus(L)
5610-0160	0-0.03"	0.001"	1.48"	0.62"
5610-0162	0-0.03"	0.0005"	1.48"	0.62"
