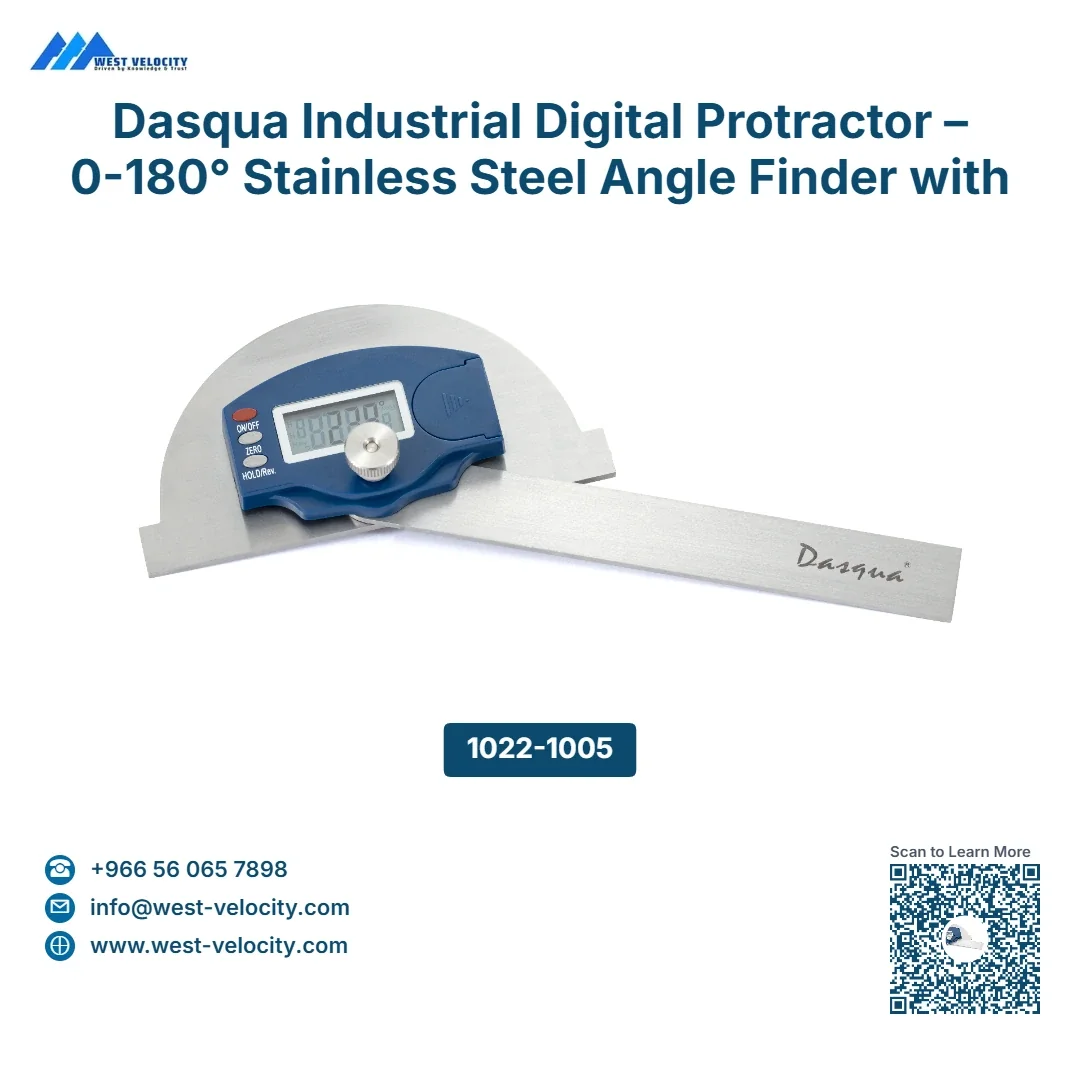

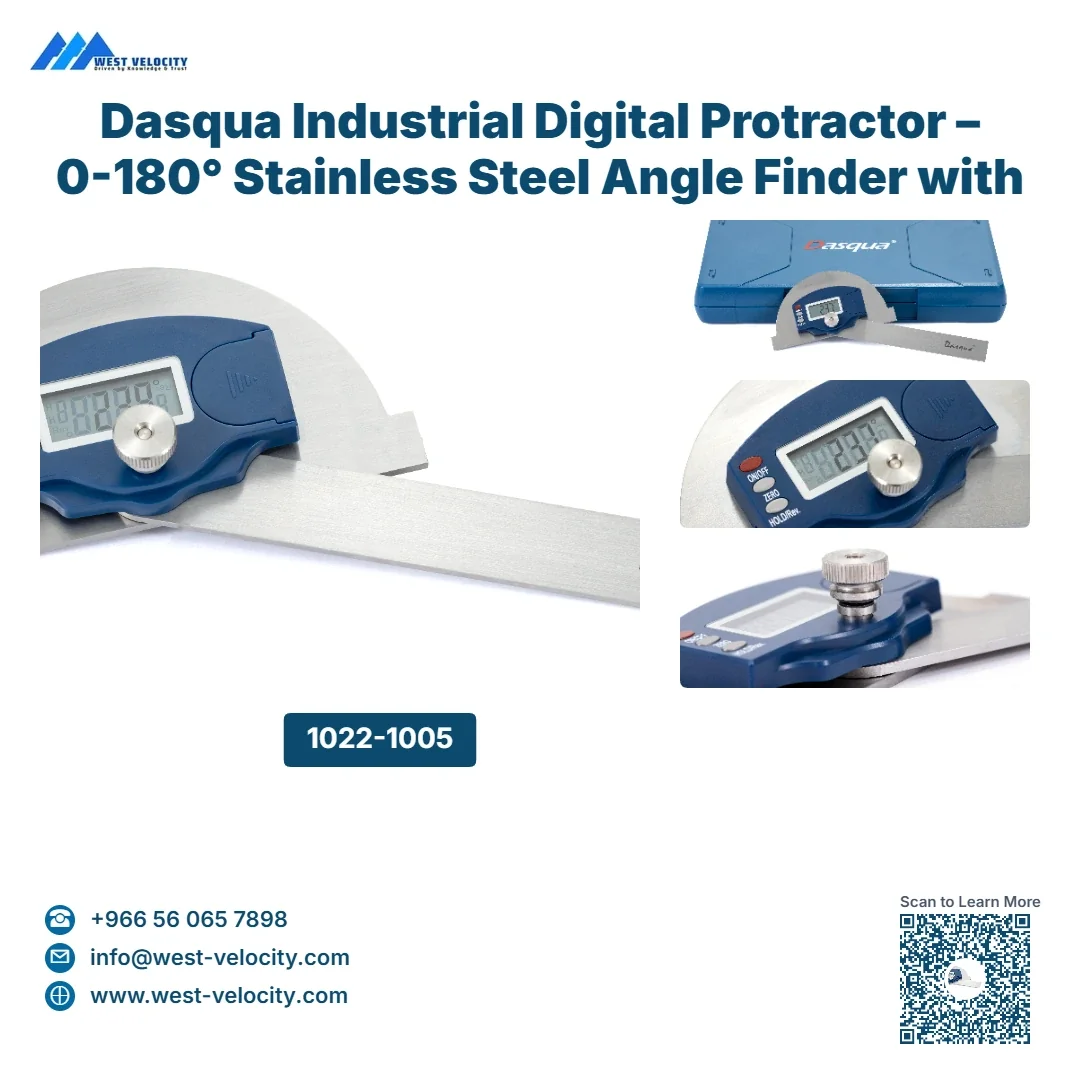

Dasqua Industrial Digital Protractor – 0-180° Stainless Steel Angle Finder with LCD Display

Name: Dasqua Industrial Digital Protractor – 0-180° Stainless Steel Angle Finder with LCD Display
Brand: Dasqua
SKU: 1022-1005
Availability: InStock

Brand: Dasqua

SKU: 1022-1005

Price on Request

Available in Saudi Arabia Delivery Time:

Wishlist

Facebook Twitter LinkedIn WhatsApp

Chat on WhatsApp

Product Overview

A professional-grade Industrial Digital Protractor by Dasqua, designed for high-precision angle measurement from 0-180°. Featuring a large LCD screen and a hardened stainless steel body, it provides accurate readings ($0.05^{\circ}$ resolution) for machining, woodworking, and engineering tasks.

Product Information

SKU 1022-1005

Category Measuring and Layout Tool

Brand Dasqua

Lead Time Delivery Time:

Performance Characteristics

Angle Measurement Accuracy 0.25 degrees

Measuring Range 180.00 degrees

Resolution Accuracy 0.05 degrees

Key Features

Explore the outstanding features of this product

0-180° Wide Measuring Range

Enables full 0-180° angular measurement capability for machining, woodworking, and engineering tasks requiring high-precision angle readings.

Hardened Stainless Steel Body

Crafted with a hardened, ground, and lapped stainless steel body with a satin chrome anti-rust finish for exceptional durability in harsh workshop environments.

High-Contrast LCD Display

Provides a large digital display for instant, error-free angle readings with 0.05° resolution, eliminating the need for manual calculations.

Locking Knob and Zero-Setting

Features a robust locking knob to securely hold any specific angle, and zero-setting at any position for convenient relative measurements.

Material Composition

Detailed breakdown of materials used in this product

Ground and Lapped

Not specified

The measuring surfaces are ground and lapped for high precision and long-term measurement consistency.

Hardened Stainless Steel

Not specified

Used for the body of the protractor, providing durability, wear resistance, and anti-rust protection for harsh workshop environments.

Satin Chrome Finish

Not specified

A coating applied to the stainless steel body, enhancing durability and providing anti-rust protection.

Composition Overview

Ground and Lapped

Not specified

Hardened Stainless Steel

Not specified

Satin Chrome Finish

Not specified

Product Applications

Discover the various ways this product can be utilized

Construction

Heavy-duty angle layout and architectural drafting.

Machining & Metalworking

Setting up mill heads and jigs.

Quality Control

Inspecting parts against blueprints.

Woodworking

Measuring blade bevels and miter angles.

Variations

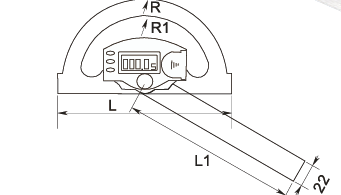

Code	Range	Size	Resolution	L	L1	R	R1	Accuracy
1022-1005	0.180	120x150	0.05	132	161.5	60	/	±15'
1022-1010	0.180	150x200	0.05	158	211.5	75	60	±15'
1022-1015	0.108	200x300	0.05	221	311.5	98	78	±15'
